Deye SUN-5/6/8/10/12K-SG01HP3-EU-DM2 | 5–12kW Three-Phase HV Hybrid Inverter

From €1.073,95

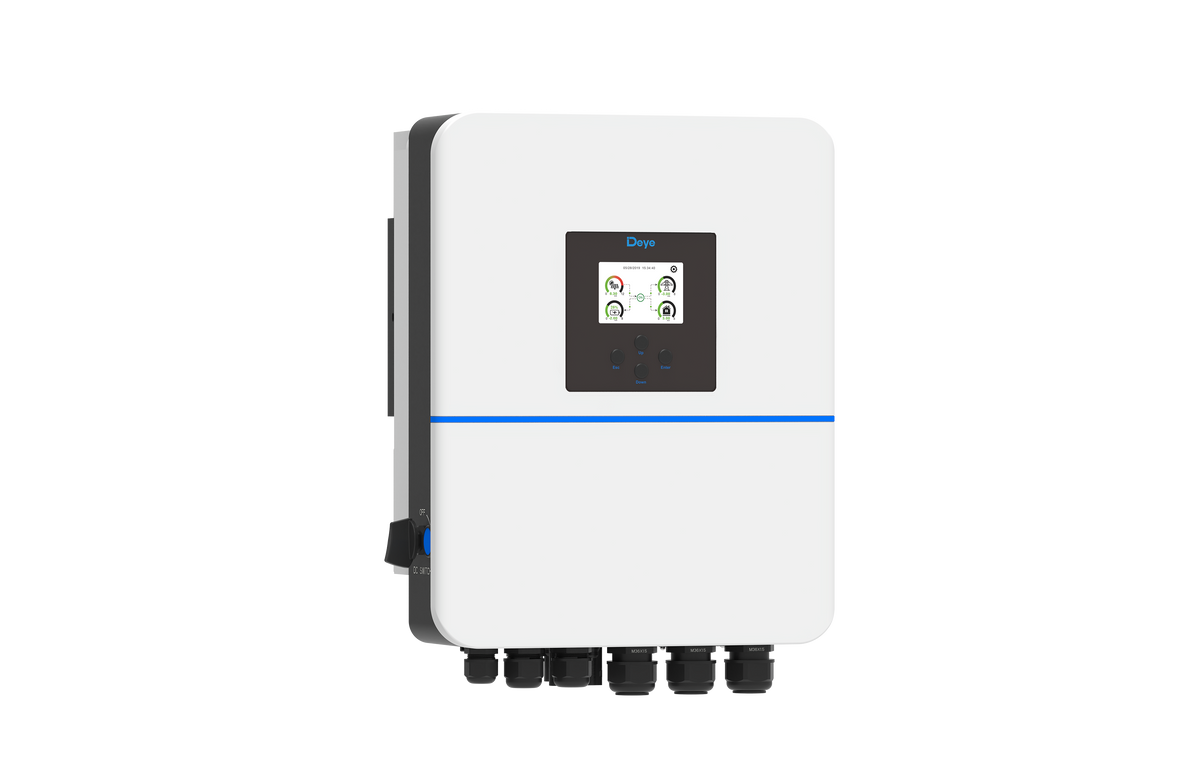

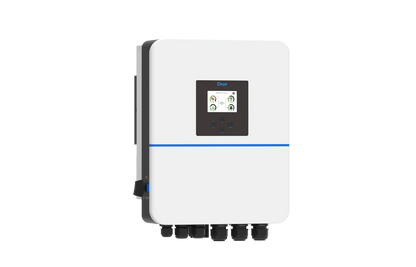

  • Deye SUN-SG01HP3-EU-DM2 hybrid inverter front view

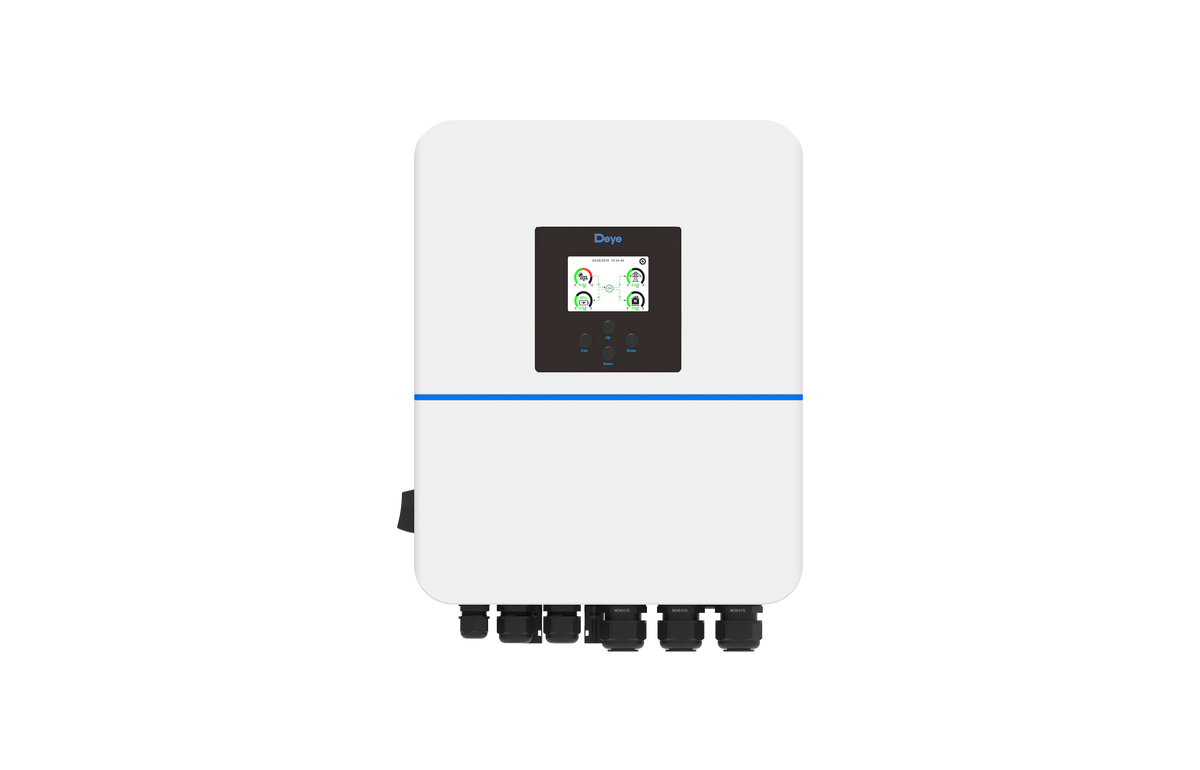

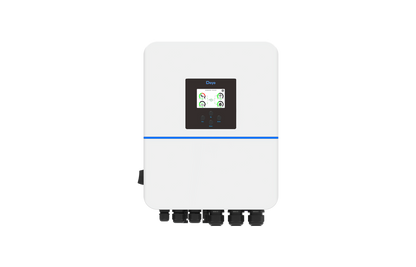

  • Deye SUN-SG01HP3-EU-DM2 hybrid inverter angle view

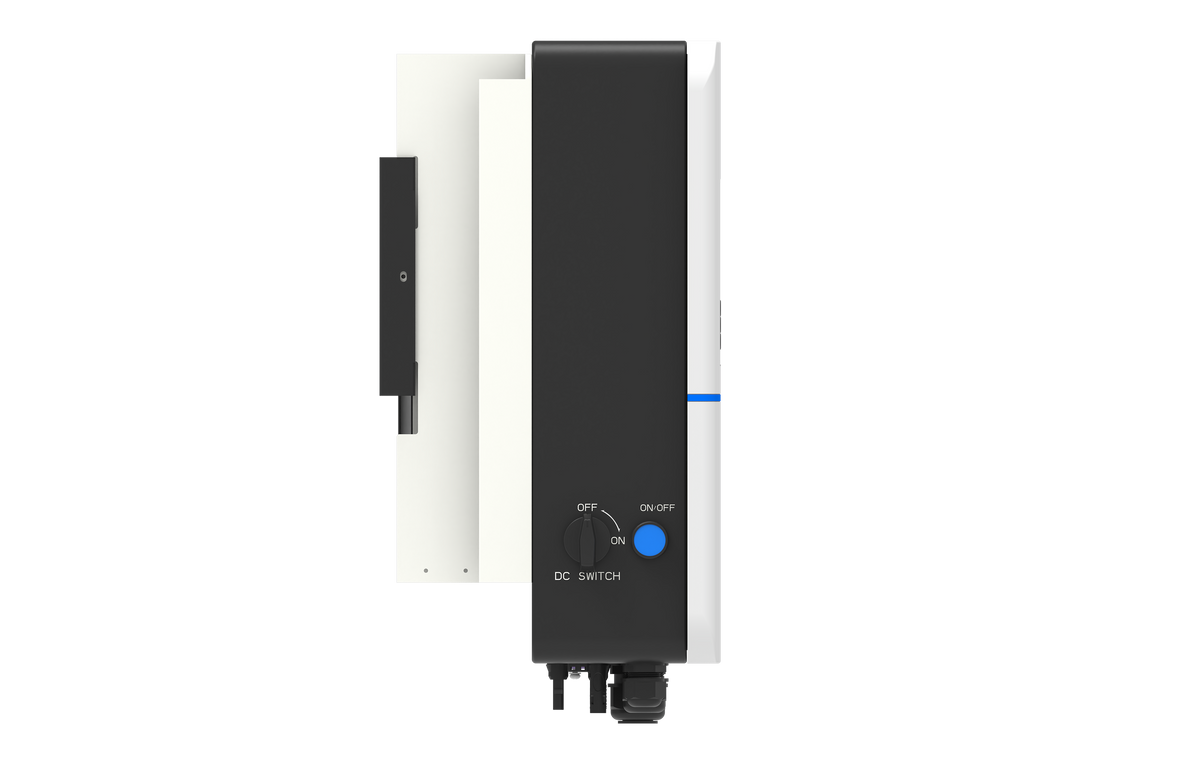

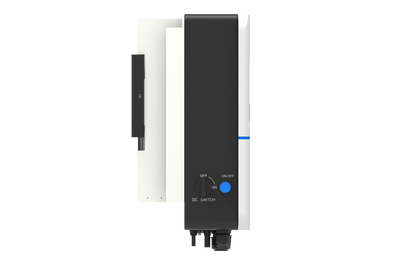

  • Deye SUN-SG01HP3-EU-DM2 hybrid inverter connection ports

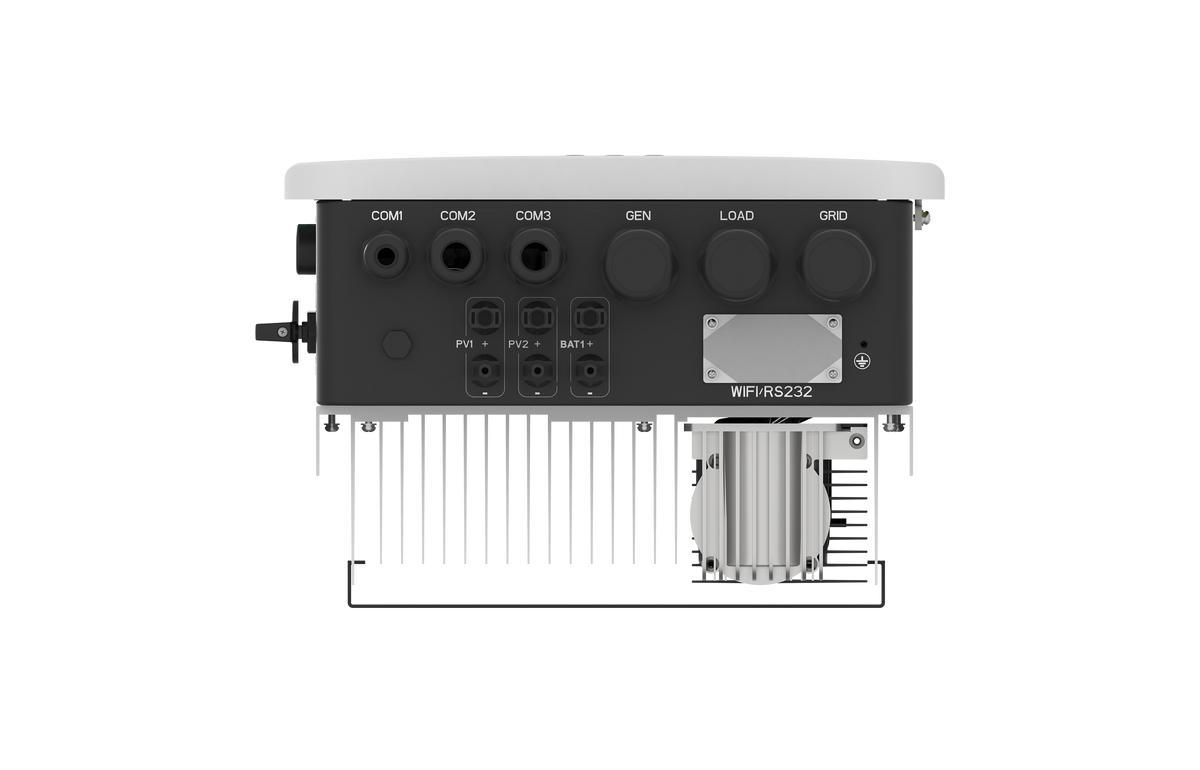

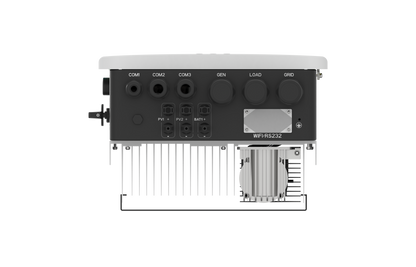

  • Deye SUN-SG01HP3-EU-DM2 hybrid inverter rear/side view
Power
€1.073,95
€1.073,95
Tax included.

Three-phase high-voltage hybrid inverter for PV plus storage. 5–12kW, 2 MPPTs, battery 130–700V, up to 10 units in parallel, 100% unbalanced output.

Key specifications

Series

SUN-5/6/8/10/12K-SG02HP3-EU-DM2

Rated power

5 / 6 / 8 / 10 / 12kW three-phase

Max. efficiency

97.6% (Euro 97.0%, MPPT >99%)

Battery

Lithium-ion, 130–700V, 37A or 55A, 1 input

MPPT

2 trackers, 1 string each (1+1)

Parallel

Up to 10 units on-grid and off-grid

Ingress protection

IP65

Warranty

5 years, up to 10 years by country

Battery and backup

High-voltage lithium battery 130–700V. Charge/discharge 37A on 5kW and 6kW, 55A on 8kW, 10kW and 12kW. One battery input, BMS self-adaptation, six charge/discharge windows. Off-grid peak 1.5× rated for 10s. Diesel generator energy can be stored in the battery. Multiple batteries in parallel.

PV and grid

Max. PV voltage 1000V, MPPT 150–850V, start-up 130V, rated 600V. Two MPPTs, one string each (1+1), 20A+20A operating, 30A+30A ISC. Rated AC 220/380V or 230/400V, 3L+N+PE, 50/60Hz. 100% unbalanced output. AC couple to an existing PV plant. Grid-to-load passthrough 35A continuous.

Protection and monitoring

Integrated DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, anti-islanding, insulation monitoring, residual current detection, DC switch, DC component monitoring, Type II surge on DC and AC. Optional AFCI. RS485, RS232, CAN. GPRS/WiFi/Bluetooth/4G/LAN optional. −40°C to +60°C, derating above 45°C. Humidity 0–100%. Altitude 2000m. Noise ≤45dB.

Deye SUN-5/6/8/10/12K-SG01HP3-EU-DM2 | 5–12kW Three-Phase HV Hybrid Inverter

€1.073,95

  • Up to

    97.6%

    max. conversion efficiency

  • Max.

    37 A

    battery charge / discharge

  • Up to

    10

    units in parallel

  • Top

    12 kW

    model in this series

Deye SUN-5/6/8/10/12K-SG01HP3-EU-DM2

Three-phase high-voltage hybrid for homes and light commercial sites — efficient storage, flexible PV integration, and real-world unbalanced load support.

High-voltage battery architecture for everyday solar and storage.

Efficient storage

High-voltage battery architecture for everyday solar and storage.

Pair lithium storage from 160–700 V with the DM2 hybrid platform. Max. efficiency 97.6% helps more of every sun-hour reach loads or the battery — PV, storage, and three-phase loads working as one system.

  • 97.6% max. efficiency
  • 160–700 V battery window
  • 37 A max. charge / discharge
  • Euro 97.0% efficiency
Built for real homes where three-phase loads never stay perfectly balanced.

Three-phase load fit

Built for real homes where three-phase loads never stay perfectly balanced.

Kitchen ovens, workshops, and HVAC rarely draw the same on every phase. With 100% unbalanced output, each phase can carry what the site needs — so one heavy feeder does not force idle capacity on the others.

  • 100% unbalanced output
  • 3L+N+PE AC topology
  • 220/380 V or 230/400 V
  • 50/60 Hz grid frequency
Six programmable charge and discharge windows for tariff-aware days.

Smart time-of-use

Six programmable charge and discharge windows for tariff-aware days.

Program up to six periods to charge when tariffs are lower and discharge when power costs more. Shape the day around your tariff structure — without promising a fixed savings percentage.

  • 6 charge / discharge periods
  • Time-of-use tariff-aware windows
  • Flexible daily schedule map
  • HV ready lithium battery input
Specify a fresh hybrid plant — or add storage to the PV you already own.

New build or retrofit

Specify a fresh hybrid plant — or add storage to the PV you already own.

Use DM2 for a new three-phase hybrid system, or AC-couple it to an existing solar inverter to add storage without replacing the original array.

  • New build full hybrid design
  • AC couple existing PV retrofit
  • 2 MPPT PV trackers
  • 3-phase homes & light C&I
Expand to ten units in parallel, and store energy from a generator.

Scale and backup

Expand to ten units in parallel, and store energy from a generator.

Parallel up to 10 units on-grid or off-grid as the site grows. GEN support lets diesel-generator energy feed the battery so backup fuel works between outages. Off-grid peak power reaches 1.5× rated for 10 seconds when loads surge.

  • 10 units in parallel
  • 1.5× / 10 s off-grid peak
  • GEN diesel storage support
  • 37 A battery current
Outdoor-ready protection with clear local status and open monitoring protocols.

Protected and connected

Outdoor-ready protection with clear local status and open monitoring protocols.

IP65 enclosure with Type II AC/DC surge protection. LCD + LED for on-site status; RS485 / RS232 / CAN for BMS and plant monitoring — with optional remote monitoring when you need visibility beyond the cabinet.

  • IP65 enclosure
  • Type II AC / DC surge
  • LCD + LED local status
  • RS485/232/CAN comms
Specifications

Technical data

Figures from the official Deye DM2 datasheet (2026-09-11). Prices TBD — preview template only.

Series SUN-5/6/8/10/12K-SG01HP3-EU-DM2
Rated AC power 5 000 / 6 000 / 8 000 / 10 000 / 12 000 W
Max. AC apparent power 5 500 / 6 600 / 8 800 / 11 000 / 13 200 VA
Max. / Euro / MPPT efficiency 97.6% / 97.0% / >99%
Battery Lithium-ion · 160–700 V · max. 37 A · 1 input · BMS self-adaption
PV / MPPT Max. 1000 V · start-up 180 V · MPPT 150–850 V · rated 600 V · 2 / 1+1 · 18+18 A / 27+27 A ISC
Grid 220/380 V, 230/400 V · 3L+N+PE · 50/60 Hz
Passthrough / off-grid peak 35 A grid→load · 1.5× rated, 10 s
Parallel / charge windows Max. 10 pcs parallel · 6 charge/discharge periods
Environment / cabinet IP65 · −40 to +60°C · ≤45 dB · 376×470×244.5 mm · 24 kg
Cooling Natural (5–10 kW) · intelligent air (12 kW)
Warranty 5 years / up to 10 years* (*by country)

Which models are in this series?

Five SKUs: SUN-5K, 6K, 8K, 10K and 12K-SG02HP3-EU-DM2. All have 2 MPPTs (1+1), 130–700V battery, three-phase AC. Battery current is 37A on 5kW/6kW and 55A on 8kW/10kW/12kW.

Can I add storage to an existing PV plant?

Yes. AC coupling lets you retrofit this hybrid inverter onto an existing solar system without replacing the original grid-tied inverter.

Does it support a diesel generator?

Yes. The inverter can store generator energy in the battery for weak-grid, off-grid and backup sites.

How does cooling differ by model?

5kW and 6kW use natural cooling. 8kW, 10kW and 12kW use intelligent air cooling. Noise is ≤45dB.

What warranty is included?

5 years, up to 10 years depending on installation country. Refer to the Deye warranty policy for the site country.

Specify this inverter for the next three-phase site

5–12 kW high-voltage hybrid (SG01HP3-EU-DM2), 2 MPPTs, 10-unit parallel, AC coupling and generator support. Preview template — not live MAIN.
