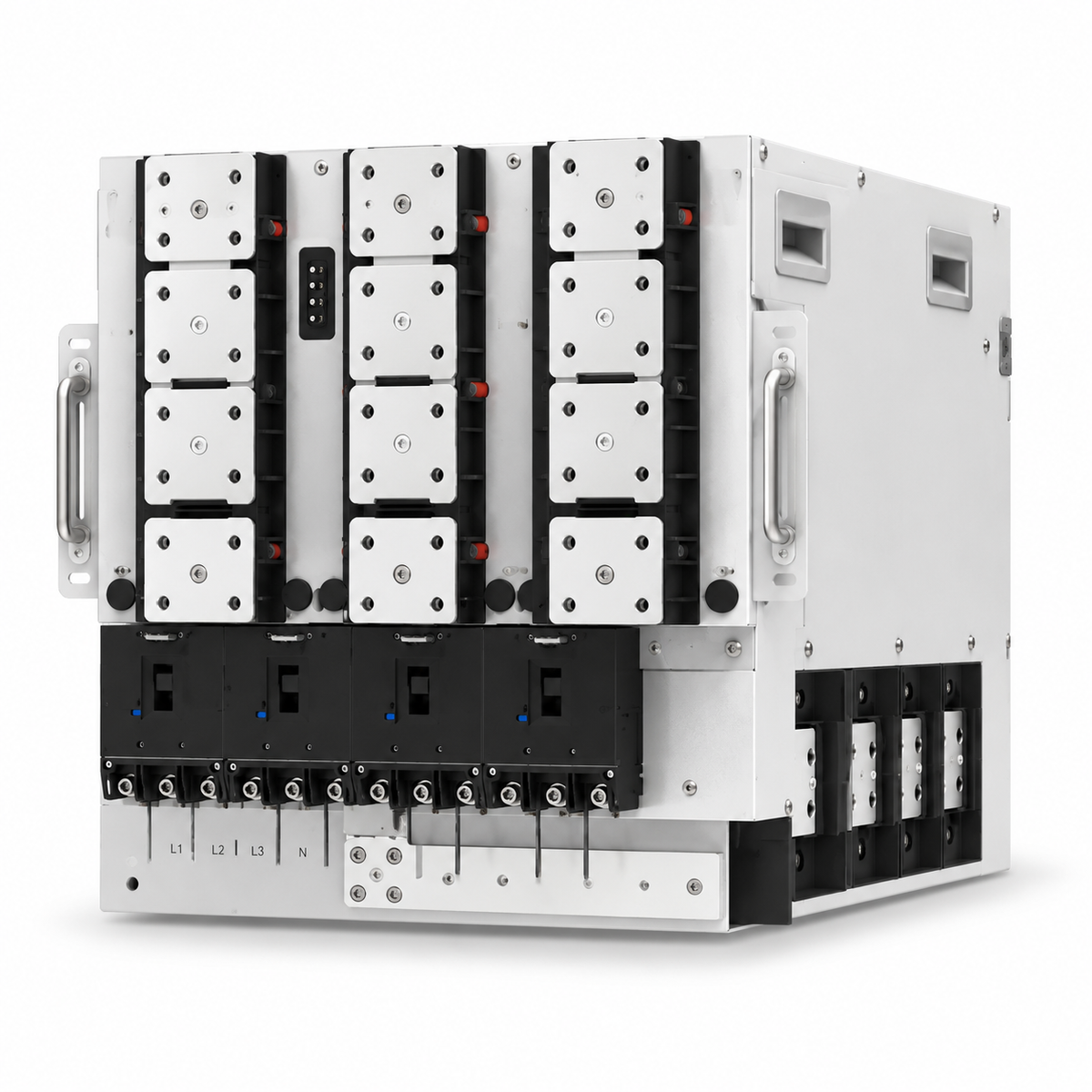

Deye SUN-STS500L | 500 kW Static Transfer Switch C&I Module

$6,071.73
$6,071.73
$6,071.73
Tax included.

Static transfer switch for modular C&I ESS — SUN-STS500L. Grid / load / generator paths each 500 kW; on/off-grid transfer <10 ms; scale to 2.5 MW with up to 5 STS.

Key specifications

Model

SUN-STS500L

Transfer

On/off-grid switching <10 ms (with PCS + battery)

Power paths

Grid/PCS · Load · GEN — each rated 500 kW (not additive)

PCS pairing

1 STS → 5×100 kW or 4×125 kW PCS

System scale

Up to 5 STS paralleled → 2.5 MW

AC / frequency

220/380 or 230/400 V · 3L/N/PE · 50/60 Hz · CAN / RS485

Environment

IP20 · natural cooling · −25 to +60°C · 543×575×671 mm · 108 kg

Warranty

10 years (subject to local policy)

What the STS does

SUN-STS500L is a static transfer switch — it connects grid, load and diesel generator and enables fast on/off-grid switching with the PCS. It does not store energy and does not generate 500 kW of power. Backup capability depends on PCS, battery and load together.

Power paths and scale

Grid/PCS side, load side and GEN side are each rated 500 kW — do not add them to claim 1.5 MW on a single STS. One STS supports 5×100 kW or 4×125 kW PCS. Up to 5 STS in parallel reach 2.5 MW system scale. Sustained off-grid load should follow PCS guidance (typically ≤70% of PCS rating for continuous off-grid).

Environment and interface

Natural cooling · −25 to +60°C · IP20 · OVC III · 543×575×671 mm · 108 kg. OT terminals · CAN / RS485 · 10-year warranty. Voltage 220/380 or 230/400 V · 50/60 Hz.

Deye SUN-STS500L | 500 kW Static Transfer Switch C&I Module

$6,071.73

  • Transfer

    <10 ms

    on / off-grid switch

  • Per path

    500 kW

    grid · load · GEN (each)

  • PCS per STS

    5×100

    or 4×125 kW

  • System scale

    2.5 MW

    up to 5 STS paralleled

Fast switching for critical loads.

Critical-load transfer

Fast switching for critical loads.

On-grid / off-grid transfer in <10 ms with matched PCS and batteries. Continuous off-grid load should stay within about 70% of PCS rated power — not diesel start time, and not absolute zero interruption for every device.

  • <10 ms transfer
  • ≤70% PCS continuous off-grid
Three 500 kW paths — ratings per path, not additive.

500 kW-class paths

Three 500 kW paths — ratings per path, not additive.

Grid / PCS, load and generator sides are each rated 500 kW. Do not sum them to 1.5 MW. The STS switches and routes power — it does not generate or store energy.

  • 500 kW grid / PCS side
  • 500 kW load · GEN each
Connect grid, load and generator.

Three independent paths

Connect grid, load and generator.

Independent GEN, Load and Grid paths form the AC-side backbone for configured solar-storage-diesel systems.

  • Grid utility / PCS
  • Load critical / plant
  • GEN diesel path
One STS for 5×100 kW or 4×125 kW PCS.

500 kW PCS block

One STS for 5×100 kW or 4×125 kW PCS.

Build a 500 kW PCS block with one SUN-STS500L — five 100 kW or four 125 kW PCS, with matched batteries and system equipment.

  • 5×100 kW PCS option
  • 4×125 kW PCS option
Expand to 2.5 MW with up to five STS.

System scalability

Expand to 2.5 MW with up to five STS.

Parallel up to 5 STS modules for campus-scale growth. 2.5 MW is multi-module system capacity and needs the corresponding PCS units — not a single-STS rating.

  • 5× STS max. parallel
  • 2.5 MW system scale

Expansion reference

PCS count per STS and system scale

One STS connects five 100 kW or four 125 kW PCS; five STS support twenty-five 100 kW or twenty 125 kW PCS (2.5 MW). Path ratings stay 500 kW each — not summed.

System scale 100 kW PCS scheme 125 kW PCS scheme
500 kW block 5× 100 kW PCS + 1× STS 4× 125 kW PCS + 1× STS
2.5 MW system 25× 100 kW PCS + 5× STS 20× 125 kW PCS + 5× STS
Ready for three-phase integration.

Three-phase ready

Ready for three-phase integration.

220/380 V or 230/400 V · 50/60 Hz · CAN / RS485 · natural cooling. IP20 — install in a suitably protected environment. 10-year warranty (subject to local policy).

  • 220/380 V or 230/400 V
  • 50/60 Hz · CAN/RS485
  • IP20 natural cooling
Technical data

SUN-STS500L at a glance

Model SUN-STS500L
Transfer time <10 ms on/off-grid
Grid / PCS · Load · GEN 500 kW each (not additive)
Rated current 758 / 725 A (per path rating)
Voltage / frequency 220/380 or 230/400 V · 50/60 Hz · 3L/N/PE
PCS pairing 5×100 kW or 4×125 kW per STS
System scale Up to 5 STS → 2.5 MW
Cooling / ingress Natural cooling · IP20 · −25 to +60°C
Size / weight 543×575×671 mm · 108 kg
Comms / warranty CAN / RS485 · 10 years

Does the STS store or generate 500 kW?

No. It is a transfer switch. Energy storage and power conversion are handled by battery and PCS. Backup duration and power depend on that system and the load.

Is one STS 1.5 MW?

No. Grid/PCS, load and GEN are each 500 kW paths. Do not add them. 2.5 MW is multi-STS system capacity (up to 5 modules).

Does &lt;10 ms mean zero interruption everywhere?

Transfer is <10 ms with PCS and battery. It is not diesel start-within-10 ms, and it is not a claim that every device sees absolute zero interruption.

Can I run continuous off-grid at 500 kW on the STS alone?

No. Sustained off-grid load should follow PCS guidance (commonly ≤70% of PCS rating). Do not promise continuous full load from the STS rating alone.

How many PCS per STS?

One STS: five 100 kW PCS or four 125 kW PCS. Up to five STS paralleled for 2.5 MW with matching PCS counts.
