Deye SUN-16/20K-SG05LP3-EU-SM2

From $1,917.33

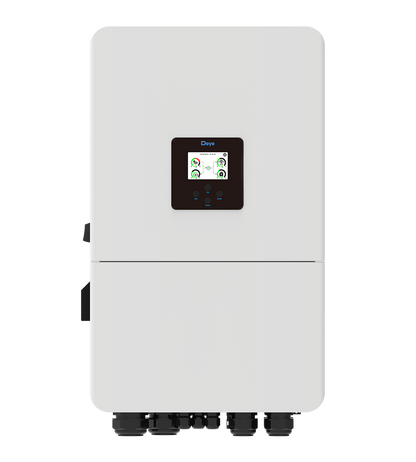

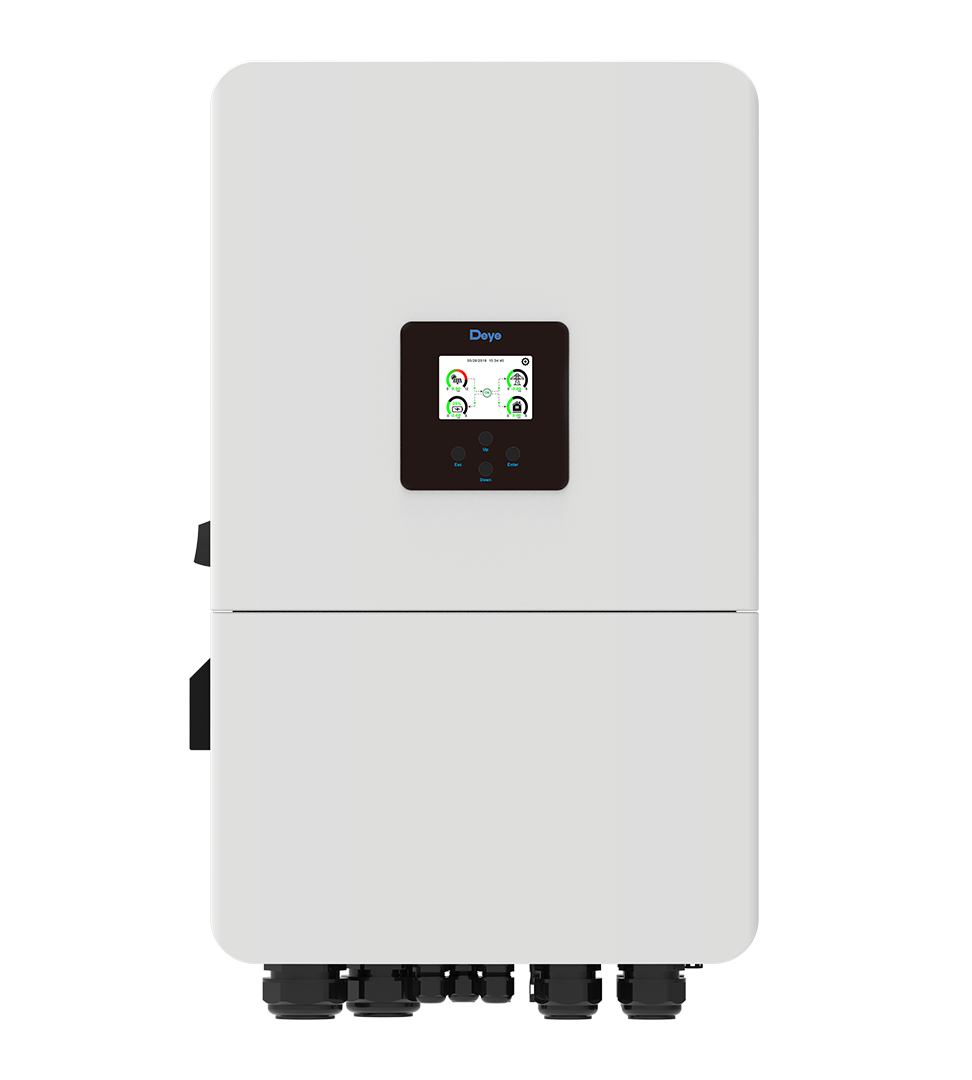

  • Deye SUN-16/20K-SG05LP3-EU-SM2 front

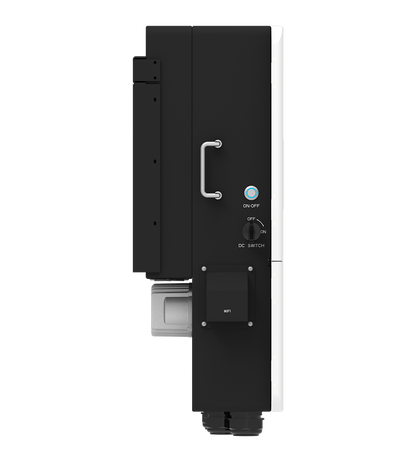

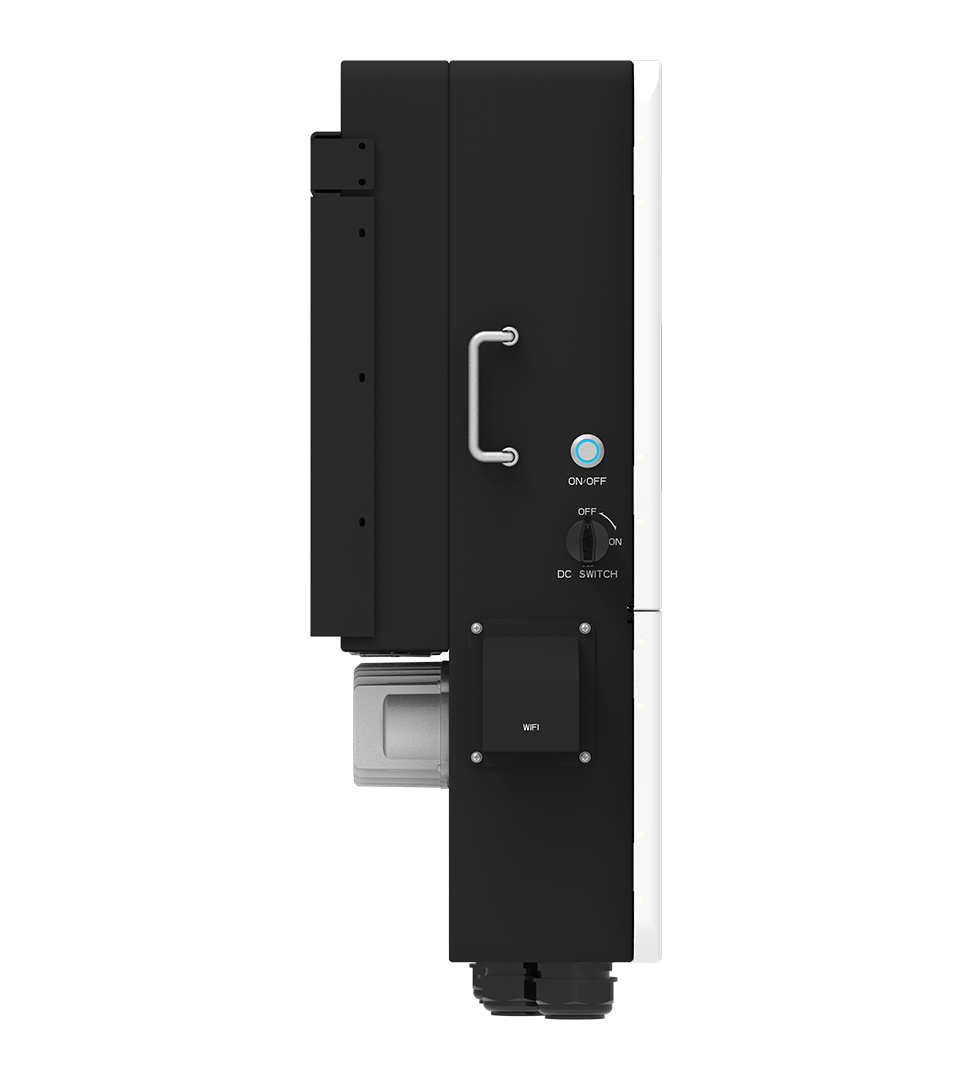

  • Deye SUN-16/20K-SG05LP3-EU-SM2 side

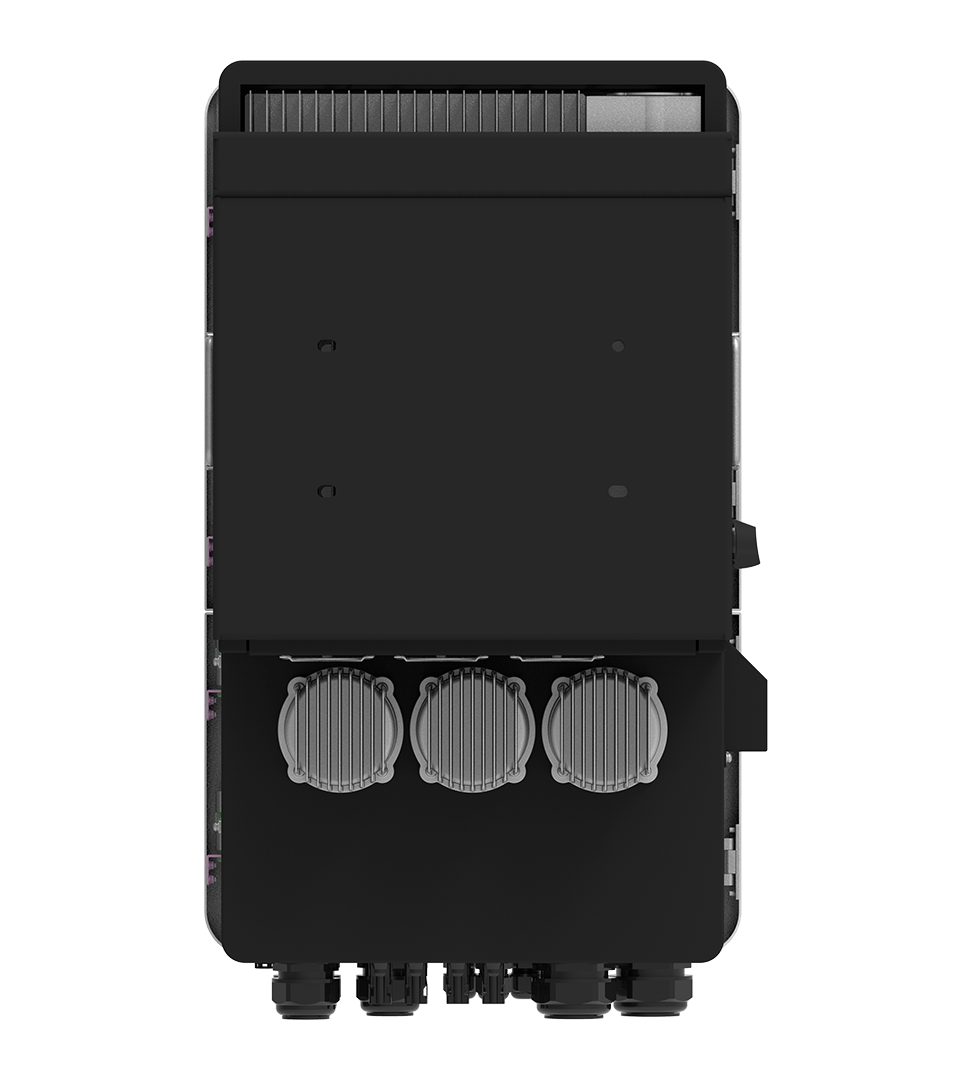

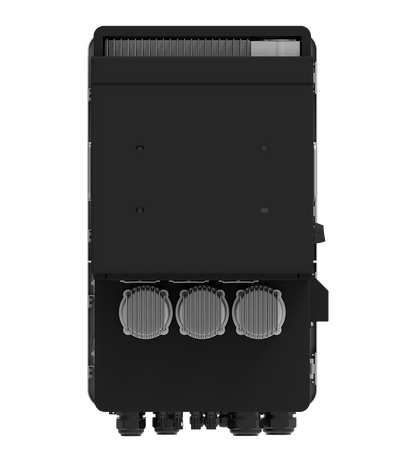

  • Deye SUN-16/20K-SG05LP3-EU-SM2 rear

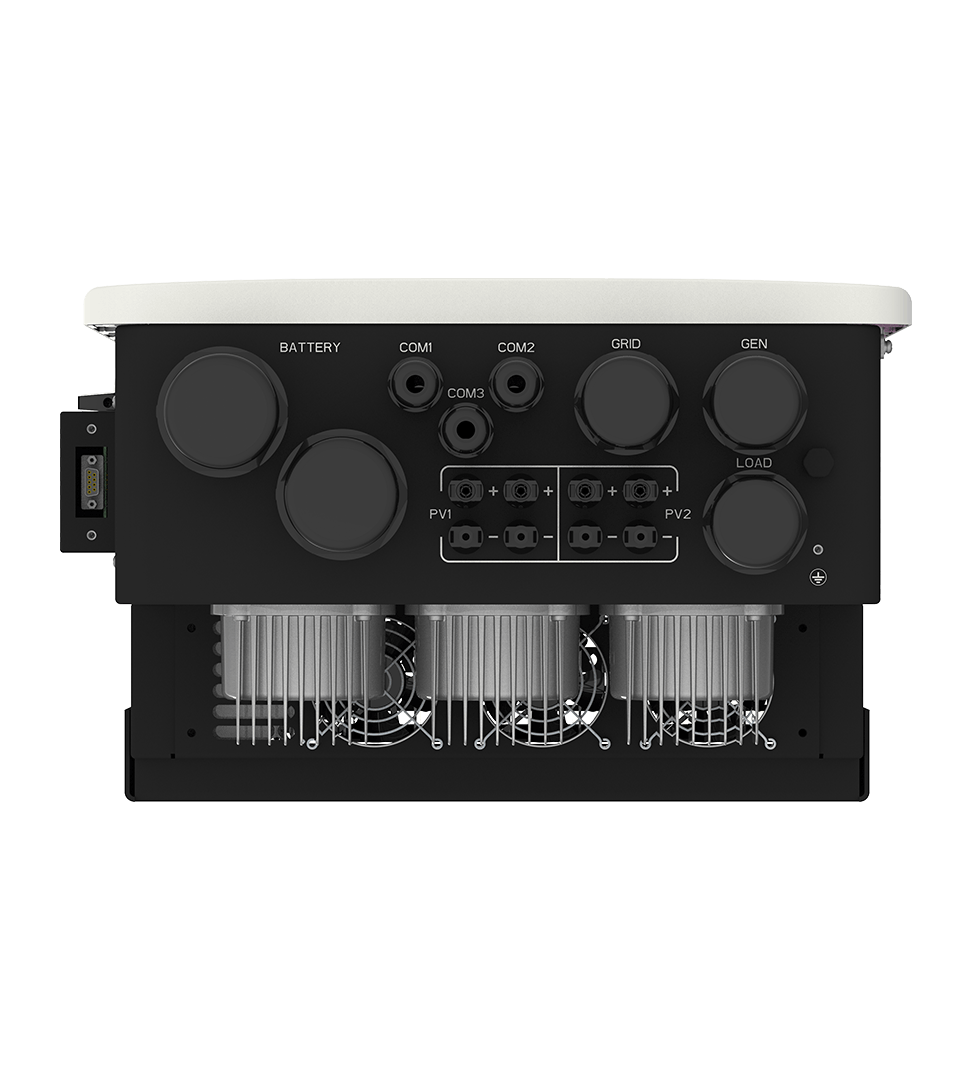

  • Deye SUN-16/20K-SG05LP3-EU-SM2 connection panel
Model
$1,917.33
$1,917.33
Tax included.

Three-phase low-voltage hybrid — SUN-16K-SG05LP3-EU-SM2 and SUN-20K-SG05LP3-EU-SM2. Rated 16 kW or 20 kW · 2 MPPT · battery 300 A or 350 A · IP65.

Key specifications

Models

SUN-16K-SG05LP3-EU-SM2 · SUN-20K-SG05LP3-EU-SM2

Rated AC

16 kW or 20 kW · three-phase 220/380 V, 230/400 V

Max. apparent

16K 17.6 kVA · 20K 22 kVA

PV access

16K 32 kW · 20K 40 kW

PV input

16K 25.6 kW · 20K 32 kW

MPPT

2 trackers · 2+2 strings · 36 A per MPPT

Battery

40–60 V · 16K 300 A · 20K 350 A · lead-acid or lithium · isolated battery side

Enclosure

IP65 · −40 to +60°C · derating above 45°C

Battery

Lead-acid or lithium · 40–60 V. Max. charge / discharge 300 A on the 16K and 350 A on the 20K. Two battery inputs. The battery side is transformer-isolated. Usable current follows the battery and its BMS. Multiple batteries can run in parallel.

PV and AC

2 MPPT trackers, 2 strings each (2+2, four strings). Max. operating input current 36 A per MPPT. Max. PV access 32 kW (16K) or 40 kW (20K). Max. PV input 25.6 kW (16K) or 32 kW (20K). Rated AC output is 16 kW or 20 kW, three-phase 220/380 V or 230/400 V. Max. apparent power 17.6 kVA or 22 kVA. AC coupling can add storage to an existing PV system.

Schedule, backup, and enclosure

Up to six charge and discharge periods. Up to 10 units in parallel, on-grid or off-grid. Diesel generator energy storage. Off-grid peak is 2× rated power for 10 seconds. IP65. Operating temperature −40 to +60°C, derating above 45°C.

Deye SUN-16/20K-SG05LP3-EU-SM2

$1,917.33

  • RATED AC POWER

    16/20kW

  • MPPT

    2

  • BATTERY CURRENT

    300/350A

  • ENCLOSURE

    IP65
Three-Phase Power. Flexible Loads.

Three-Phase Power. Flexible Loads.

The SUN-16K is rated 16 kW and the SUN-20K is rated 20 kW, three-phase at 220/380 V or 230/400 V. Maximum apparent power is 17.6 kVA on the 16K and 22 kVA on the 20K. Output can be 100% unbalanced, and each phase can carry up to 50% of that model's rated power.

  • 16 / 20 kW Rated AC power
  • 17.6 / 22 kVA Max. apparent power
  • 100% Unbalanced output
  • 50% Each phase, of rated power

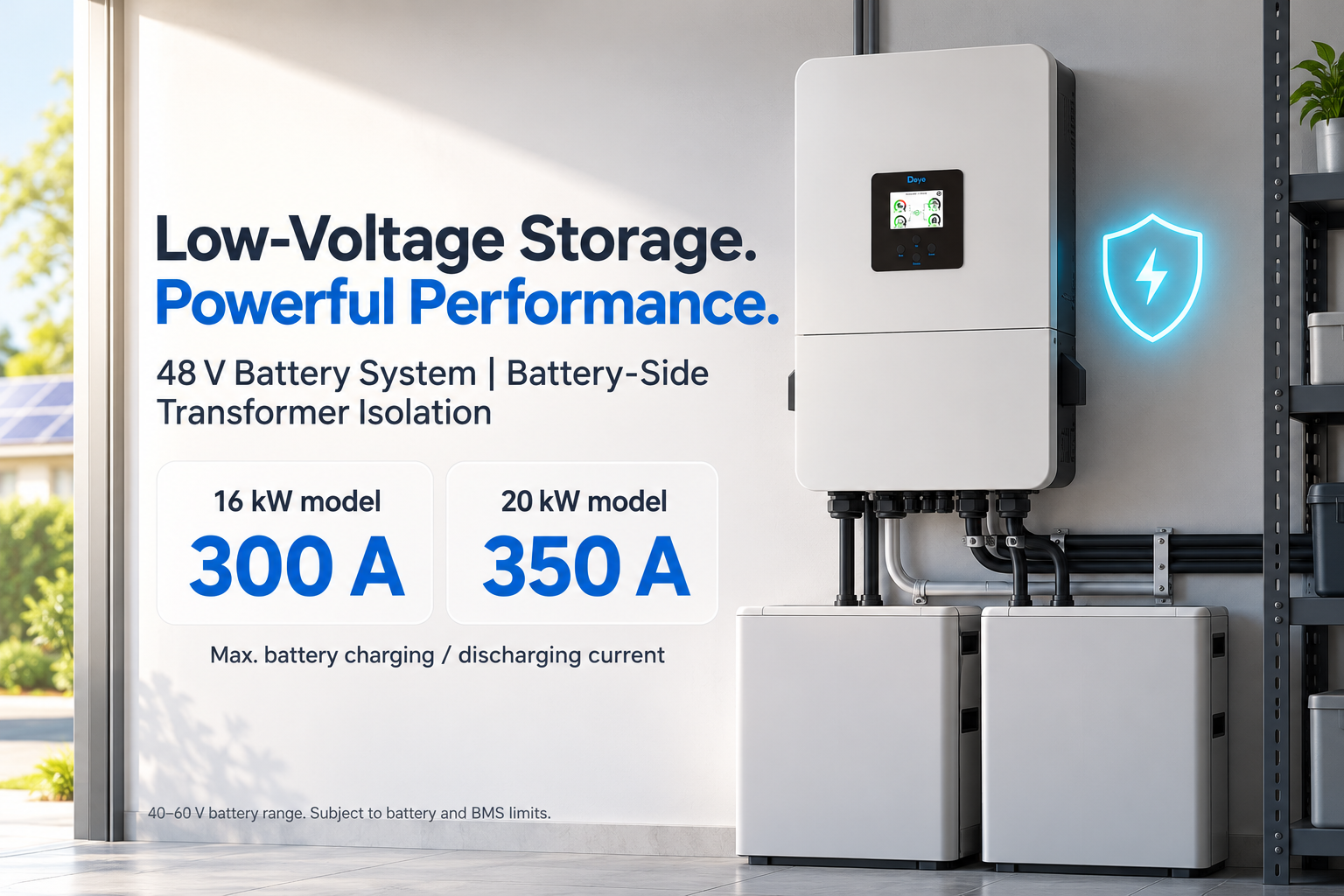

Low-Voltage Storage. Powerful Performance.

Low-Voltage Storage. Powerful Performance.

Lead-acid or lithium batteries run at 40–60 V, with the battery side transformer-isolated. The 16K charges and discharges at up to 300 A; the 20K at up to 350 A. There are two battery inputs, and usable current also follows the battery and its BMS. Multiple batteries can run in parallel.

  • 40–60 V Battery voltage
  • 300 A 16K charge / discharge
  • 350 A 20K charge / discharge
  • 2 Battery inputs
Two MPPTs. More Solar Flexibility.

Two MPPTs. More Solar Flexibility.

Two MPPT trackers, with two strings on each (2+2). Operating current is 36+36 A, and short-circuit current is 54+54 A. Max. PV access is 32 kW on the 16K and 40 kW on the 20K; max. PV input is 25.6 kW and 32 kW. MPPT voltage is 160–650 V, with 800 V maximum PV voltage, 160 V start-up, and 550 V rated PV input.

  • 2 / 2+2 MPPT / strings
  • 36+36 A Operating PV current
  • 32 / 40 kW Max. PV access
  • 25.6 / 32 kW Max. PV input
Energy That Follows Your Schedule

Energy That Follows Your Schedule

Both models accept up to six time periods for battery charging and discharging. Set when the battery charges and when it discharges across the day. The period count is the same on the 16K and the 20K.

  • 6 Time periods
  • Charge Battery charging
  • Discharge Battery discharging

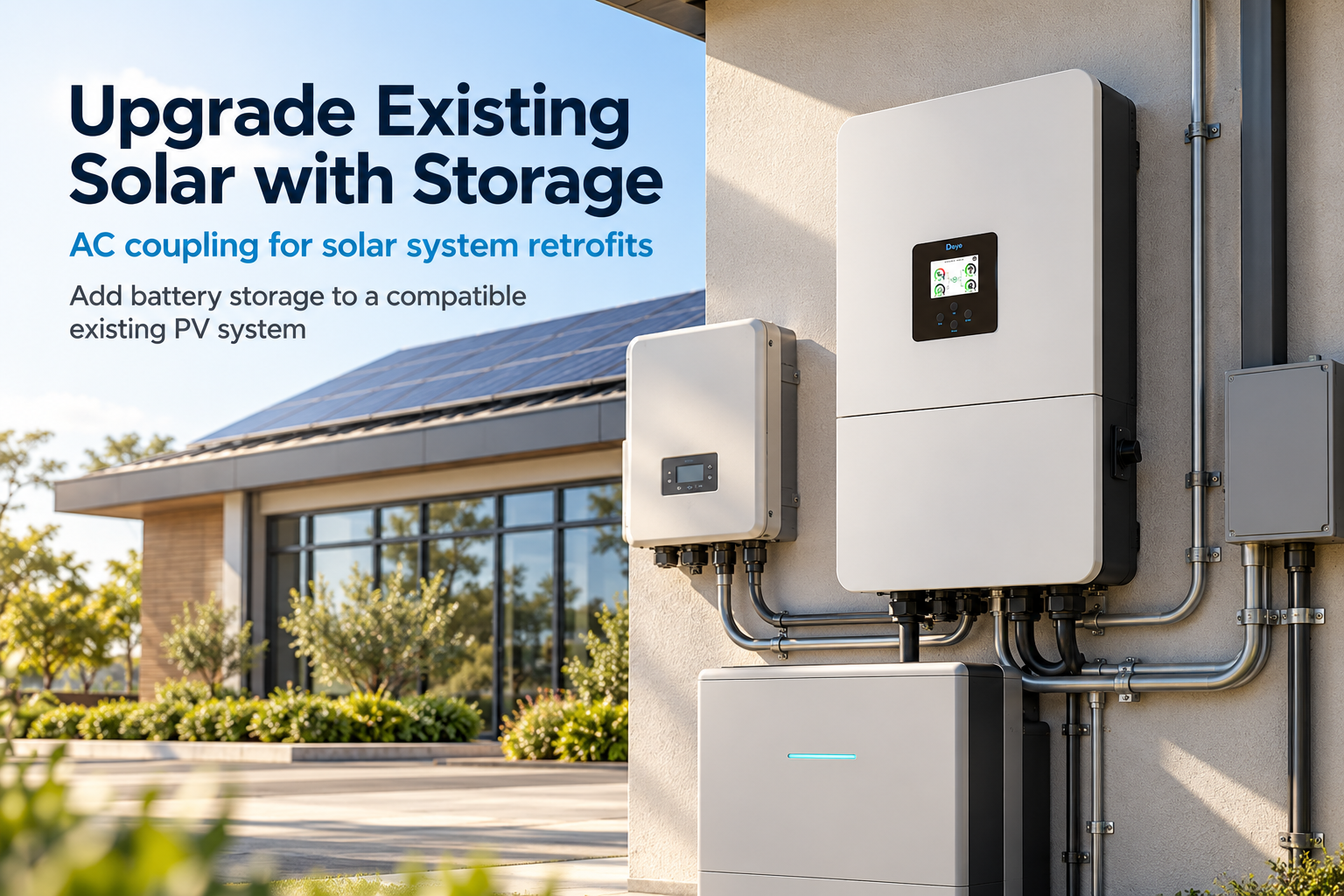

Upgrade Existing Solar with Storage

Upgrade Existing Solar with Storage

AC coupling retrofits this inverter onto an existing solar system so storage can be added. Both the 16K and the 20K support it. The connection is on the AC side of the existing system.

  • AC couple Retrofit existing solar
  • 16K and 20K Both models

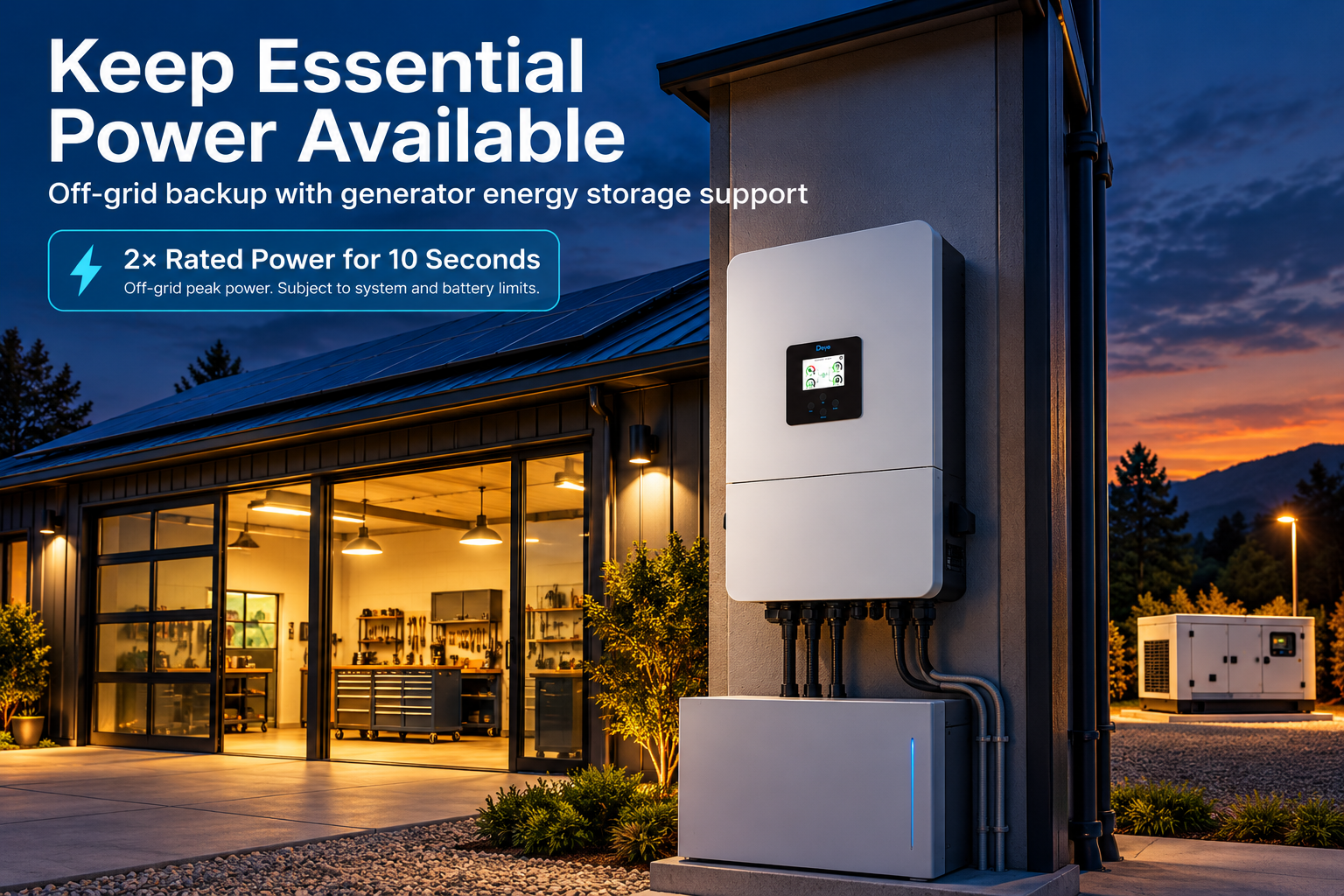

Keep Essential Power Available

Keep Essential Power Available

Off-grid, peak power is twice that model's rated output for 10 seconds — 32 kW on the 16K and 40 kW on the 20K. That peak is not a continuous rating. The inverter can store energy from a diesel generator. Continuous grid-to-load passthrough is 70 A on both models.

  • 2× for 10 s Off-grid peak
  • 32 / 40 kW 16K / 20K peak
  • Diesel Generator storage
  • 70 A AC passthrough

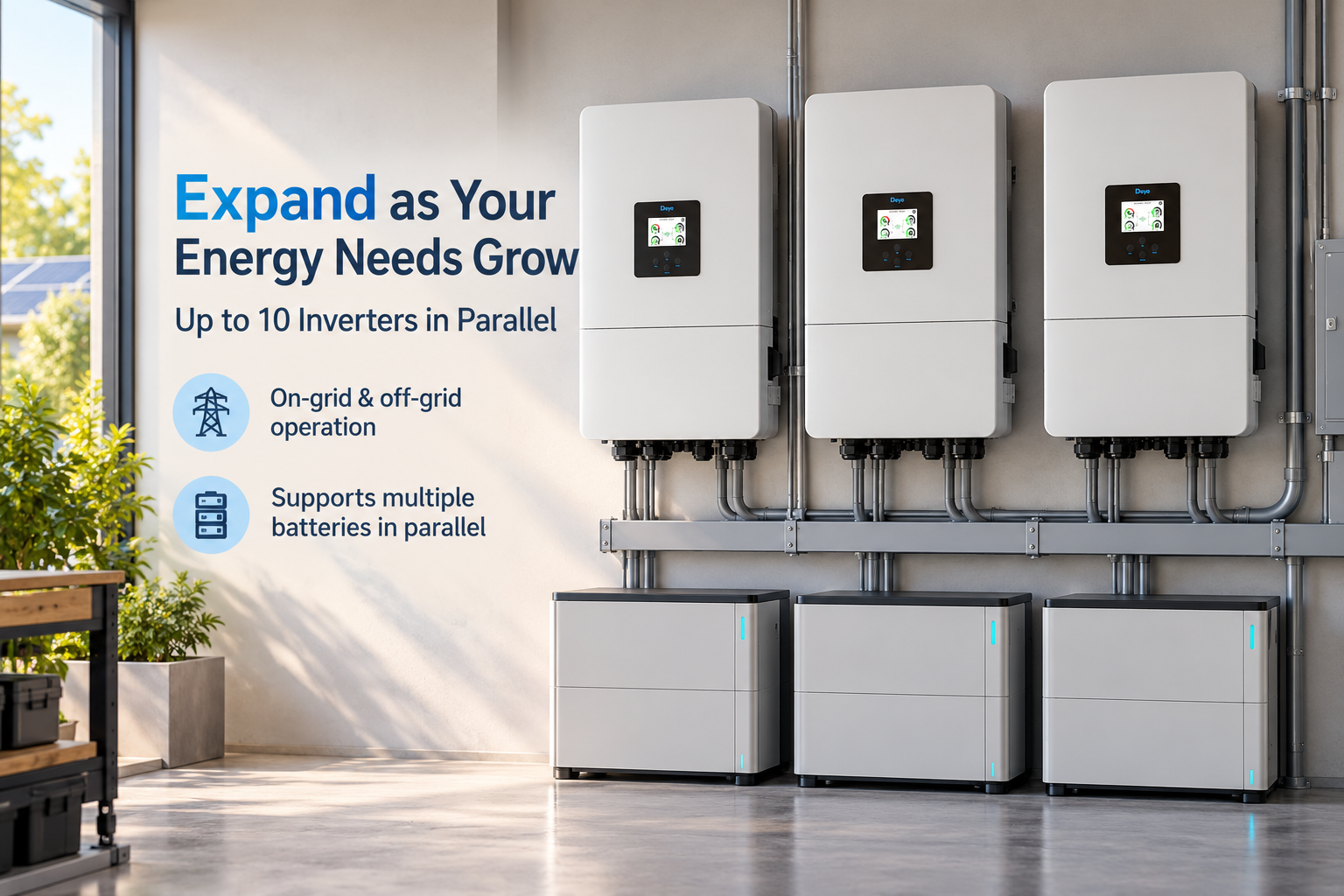

Expand as Your Energy Needs Grow

Expand as Your Energy Needs Grow

Up to 10 inverters can run in parallel, on-grid or off-grid. The limit is the same for the 16K and the 20K. Multiple batteries can also run in parallel.

  • 10 Inverters in parallel
  • On-grid Parallel operation
  • Off-grid Parallel operation
  • Batteries Multiple in parallel

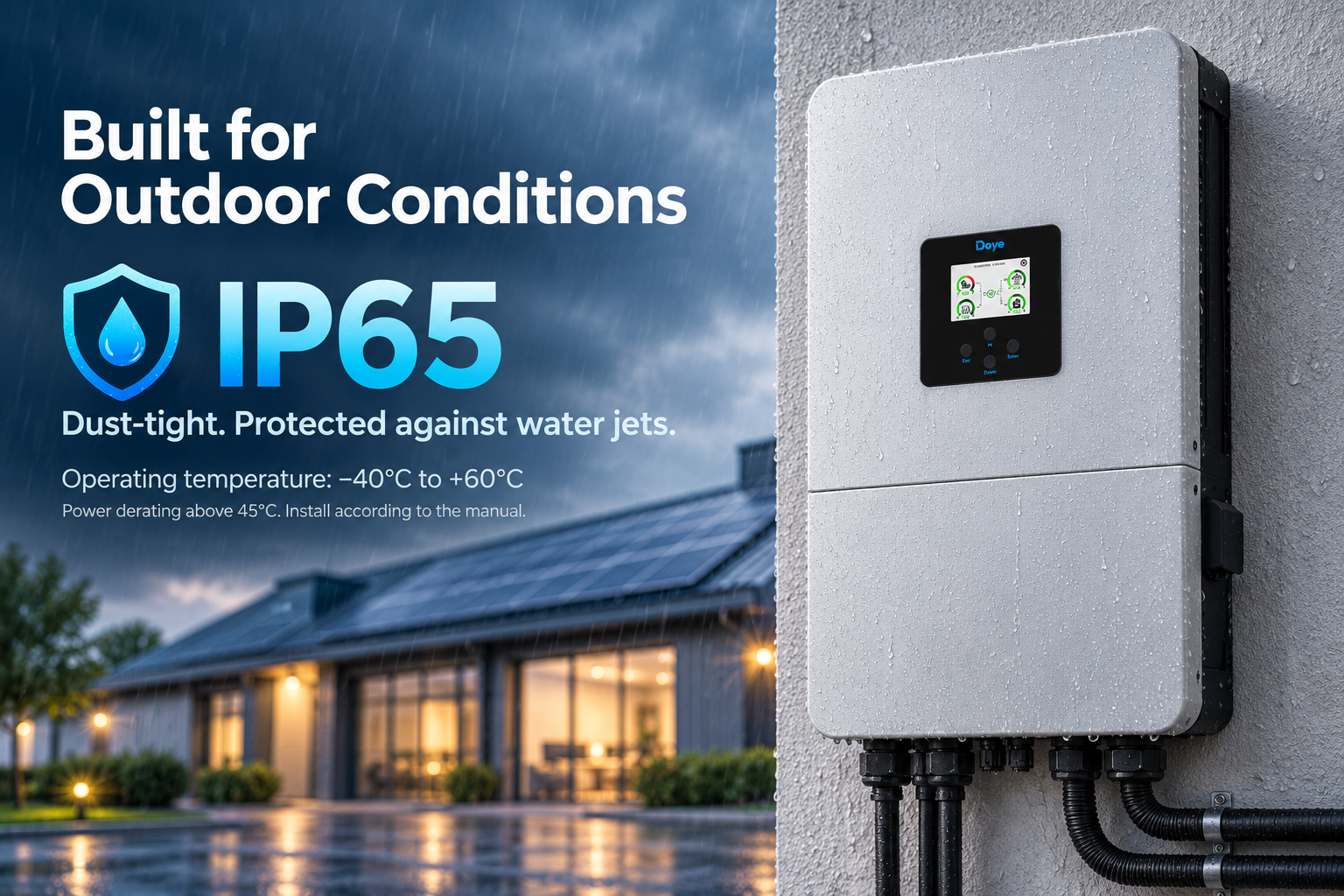

Built for Outdoor Conditions

Built for Outdoor Conditions

The enclosure is IP65. Operating temperature is −40 to +60°C, with derating above 45°C, humidity of 0–100%, and an altitude limit of 3000 m. Intelligent air cooling keeps noise under 60 dB. Max. efficiency is 97.6%, Euro efficiency 97.0%, and MPPT efficiency is greater than 99%.

  • IP65 Enclosure
  • −40 to +60°C Operating range
  • 3000 m Altitude
  • 97.6% Max. efficiency
SPECIFICATIONS

Technical data

Parameter SUN-16K-SG05LP3-EU-SM2 SUN-20K-SG05LP3-EU-SM2
Rated AC active power 16 kW 20 kW
Max. AC apparent power 17.6 kVA 22 kVA
Unbalanced output 100%, each phase up to 50% of rated power 100%, each phase up to 50% of rated power
Battery voltage 40–60 V 40–60 V
Max. battery charge / discharge current 300 A 350 A
MPPT / PV strings 2 / 2+2 2 / 2+2
Max. operating PV input current 36+36 A 36+36 A
Max. PV access power 32 kW 40 kW
Max. PV input power 25.6 kW 32 kW
Max. parallel units Up to 10 Up to 10
Off-grid peak 2× rated power, 10 s 2× rated power, 10 s
Max. efficiency 97.6% 97.6%
Ingress protection IP65 IP65
Operating temperature −40 to +60°C, derating above 45°C −40 to +60°C, derating above 45°C
Cabinet size (W×H×D) 456×750×268.5 mm, excl. connectors and brackets 456×750×268.5 mm, excl. connectors and brackets
Weight 51.9 kg 51.9 kg
