Deye SUN-10/12K-SG02LP1-EU-AM3

From $1,293.11

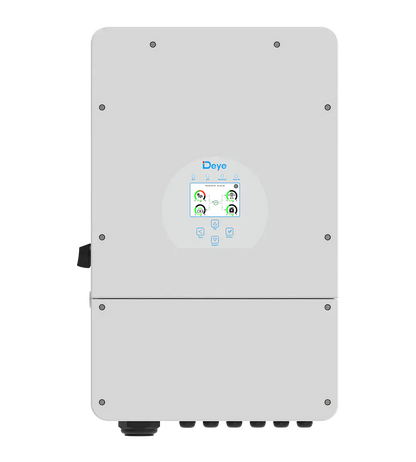

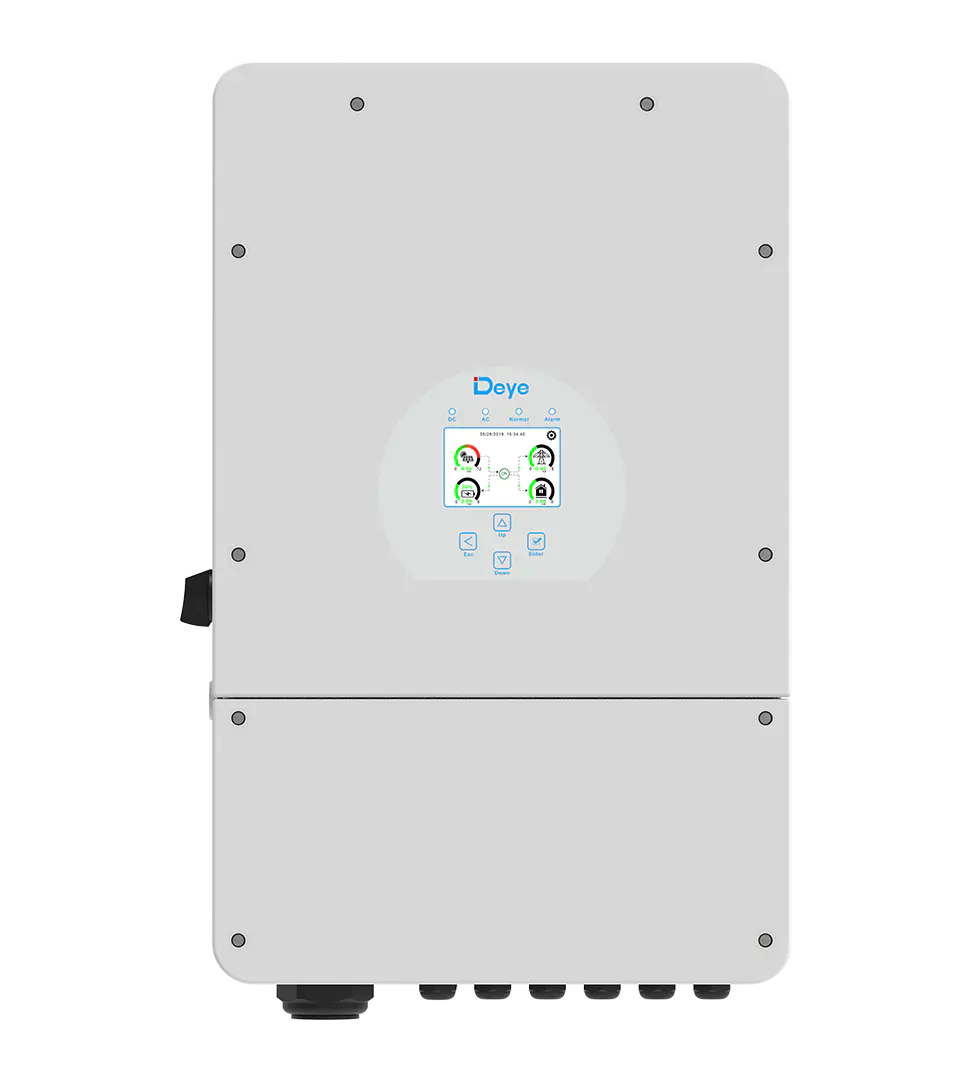

  • SUN-10/12K-SG02LP1-EU-AM3 front

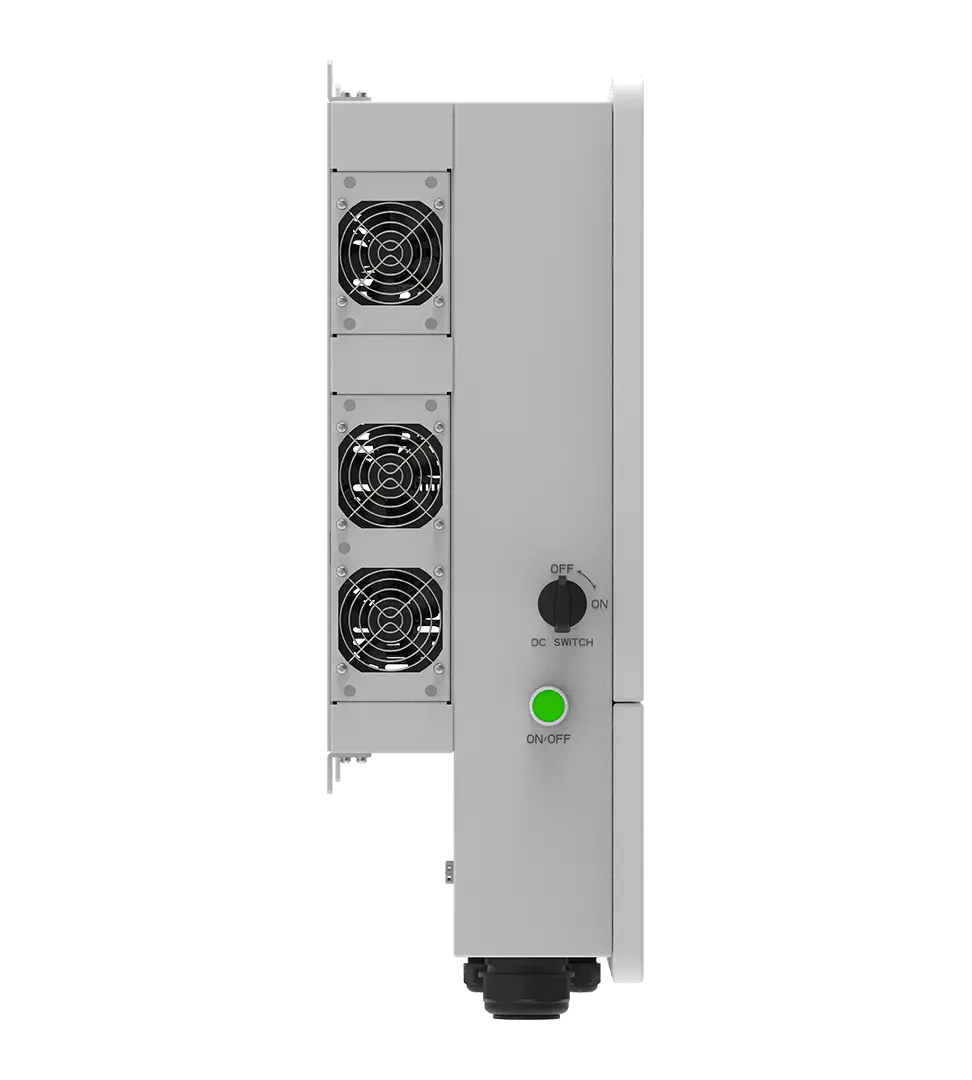

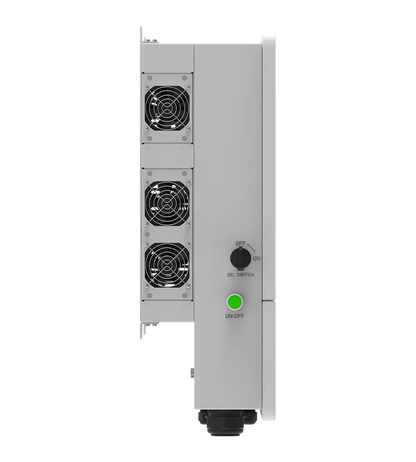

  • SUN-10/12K-SG02LP1-EU-AM3 side

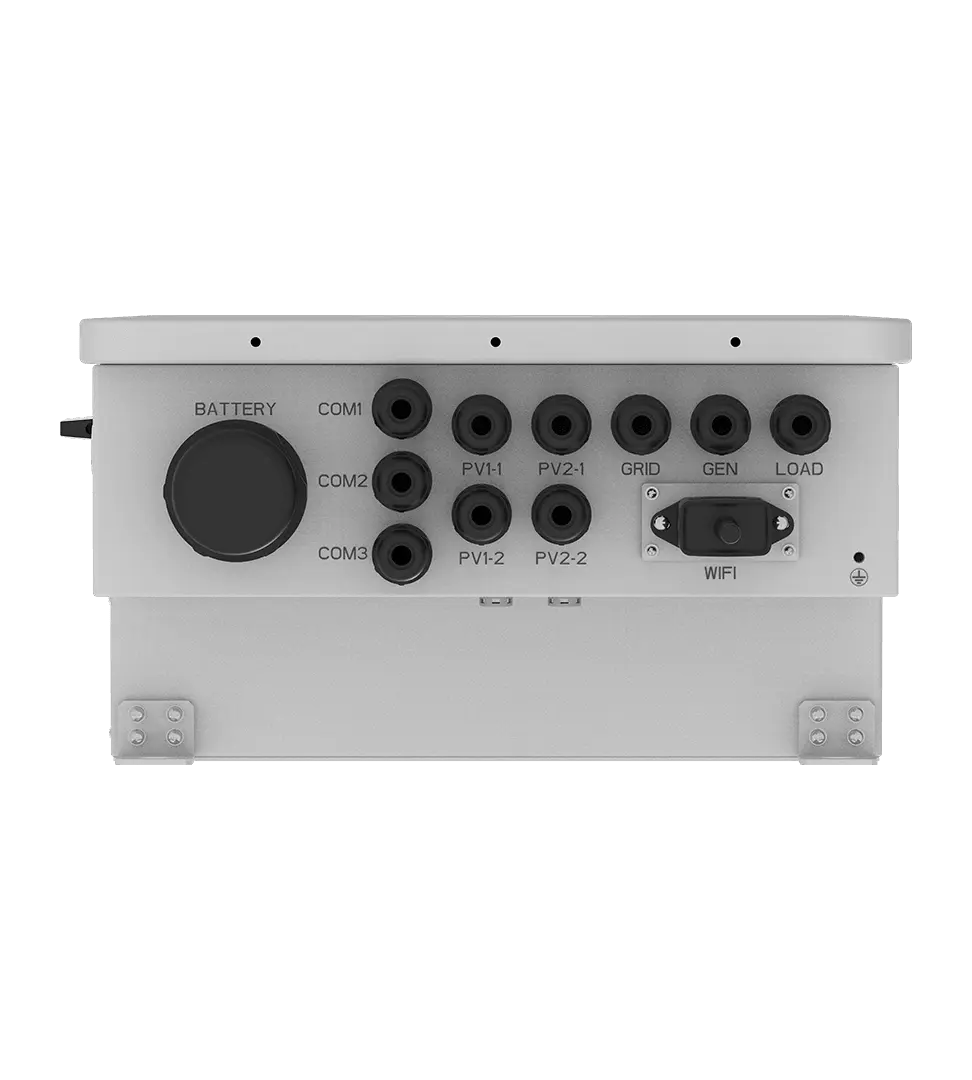

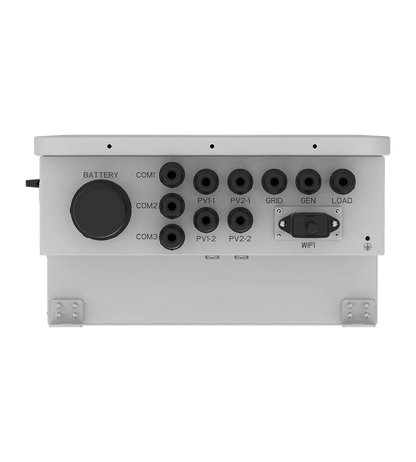

  • SUN-10/12K-SG02LP1-EU-AM3 ports
Model
$1,517.42
$1,517.42
Tax included.

Single-phase low-voltage hybrid — SUN-10K-SG02LP1-EU-AM3 and SUN-12K-SG02LP1-EU-AM3. Rated 10 kW or 12 kW · 3 MPPT · battery 220 A or 250 A · IP65.

Key specifications

Models

SUN-10K-SG02LP1-EU-AM3 · SUN-12K-SG02LP1-EU-AM3

Rated AC

10 kW or 12 kW · single-phase 220/230 V

Max. apparent

10K 11 kVA · 12K 13.2 kVA

PV access

10K 20 kW · 12K 24 kW

PV input

10K 16 kW · 12K 19.2 kW

MPPT

3 trackers · 2+2+2 strings · 26 A per MPPT

Battery

40–60 V · 10K 220 A · 12K 250 A · lead-acid or lithium · limited by the battery and BMS

Enclosure

IP65 · −40 to +60°C · derating above 45°C

Battery

Lead-acid or lithium · 40–60 V. Max. charge / discharge 220 A on the 10 kW model and 250 A on the 12 kW model. Usable current follows the battery and its BMS. Multiple batteries can run in parallel.

PV and AC

3 MPP trackers, 2 strings each (2+2+2, six strings). Max. operating input current 26 A per MPPT. Max. PV access 20 kW (10K) or 24 kW (12K). Max. PV input 16 kW (10K) or 19.2 kW (12K). Rated AC output is 10 kW or 12 kW, single-phase 220/230 V. Max. apparent power 11 kVA or 13.2 kVA. AC coupling can add storage to an existing PV system; connection follows the system design.

Schedule, backup, and enclosure

6 battery charge and discharge periods, including peak and off-peak tariffs where those apply. Off-grid peak is 2× rated power for 10 seconds. Diesel generator energy can be stored. Up to 16 units in parallel, on-grid and off-grid. IP65 · −40 to +60°C · derating above 45°C.

Deye SUN-10/12K-SG02LP1-EU-AM3

$1,517.42

  • Rated AC

    10 / 12 kW

    Single-phase 220/230 V

  • MPPT

    3

    6 strings · 26 A each

  • Battery

    220 / 250 A

    40–60 V · 10K / 12K

  • Enclosure

    IP65

    −40 to +60°C

Power More of Your Home

Single-phase output

Power More of Your Home

Rated 10 kW or 12 kW on a single-phase 220/230 V supply. For larger homes, and for small commercial loads that can run on one phase, with several appliances on at once.

  • 10 kW 10K rated AC
  • 12 kW 12K rated AC
  • 220/230 V single-phase
3 MPPT. More Roof Possibilities.

Roof layout

3 MPPT. More Roof Possibilities.

Three independent MPPTs, two strings on each tracker — 6 strings in a 2+2+2 layout. Each MPPT accepts up to 26 A operating current, so different roof faces can be tracked separately.

  • 3 MPPT trackers
  • 2+2+2 strings
  • 26 A per MPPT
High-Current Energy Storage

Charge and discharge

High-Current Energy Storage

Max. charge and discharge is 220 A on the 10 kW model and 250 A on the 12 kW model. Battery voltage 40–60 V, lead-acid or lithium. Usable current follows the battery and its BMS.

  • 220 A 10K battery
  • 250 A 12K battery
  • 40–60 V battery voltage
Energy on Your Schedule

Six periods

Energy on Your Schedule

6 charge and discharge periods. Set them around the tariff and daily use, including peak and off-peak prices where those apply.

  • 6 charge / discharge periods
Give Existing Solar a Storage Upgrade

Existing solar

Give Existing Solar a Storage Upgrade

AC coupling adds storage to an existing PV system. How the array is connected depends on the system design.

  • AC couple retrofit storage
More Ways to Keep Power Available

Backup and generator

More Ways to Keep Power Available

Off-grid peak is 2× rated power for 10 seconds. Diesel generator energy can be stored, for outage backup and short load starts.

  • 2× off-grid peak
  • 10 s peak duration
  • Generator energy storage
Expand with Your Energy Needs

Parallel expansion

Expand with Your Energy Needs

Up to 16 units in parallel, on-grid and off-grid. Multiple batteries can run in parallel as demand grows.

  • 16 max. parallel units
  • On-grid and off-grid
  • Batteries in parallel
Built for Outdoor Conditions

Outdoor enclosure

Built for Outdoor Conditions

IP65 dust and water-jet protection. Operating range −40 to +60°C, with derating above 45°C.

  • IP65 ingress
  • −40°C lower limit
  • +60°C upper limit
  • >45°C derating
SPECIFICATIONS

Technical data

Parameter SUN-10K-SG02LP1-EU-AM3 SUN-12K-SG02LP1-EU-AM3
Rated AC active power 10 kW 12 kW
Max. AC apparent power 11 kVA 13.2 kVA
Battery voltage 40–60 V 40–60 V
Max. battery charge / discharge current 220 A 250 A
MPPT / PV strings 3 / 2+2+2 3 / 2+2+2
Max. operating current per MPPT 26 A 26 A
Max. PV access power 20 kW 24 kW
Max. PV input power 16 kW 19.2 kW
Max. parallel units 16 16
Off-grid peak 2× rated power, 10 s 2× rated power, 10 s
Max. efficiency 97.6% 97.6%
Ingress protection IP65 IP65
Operating temperature −40 to +60°C, derating above 45°C −40 to +60°C, derating above 45°C
Cabinet size (W×H×D) 420×670×233 mm 420×670×233 mm
Weight 35.6 kg 35.6 kg
