Deye SUN-16/18K-SG01LP1-EU-AM3-P

From $1,917.33

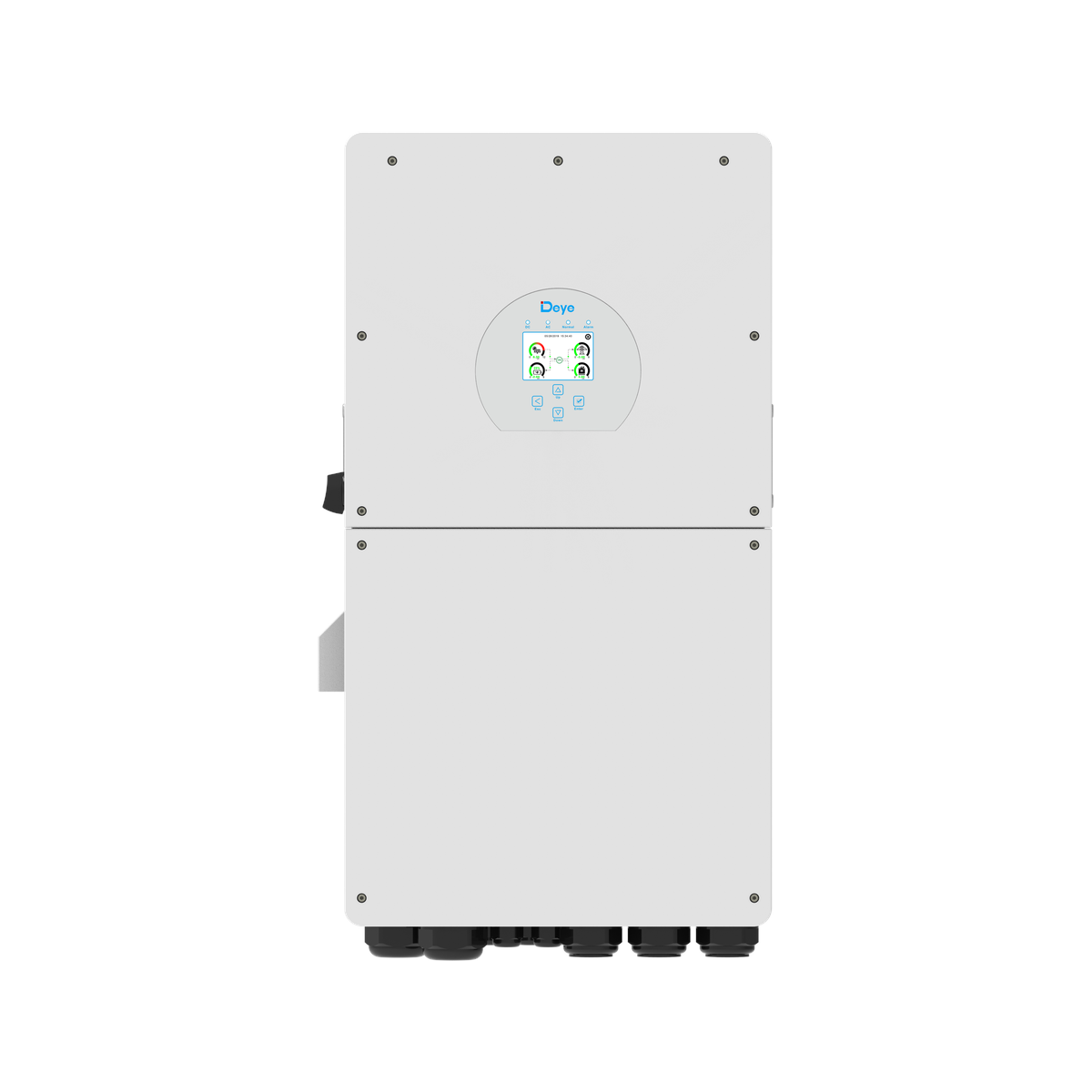

  • Deye SUN-16/18K-SG01LP1-EU-AM3-P front

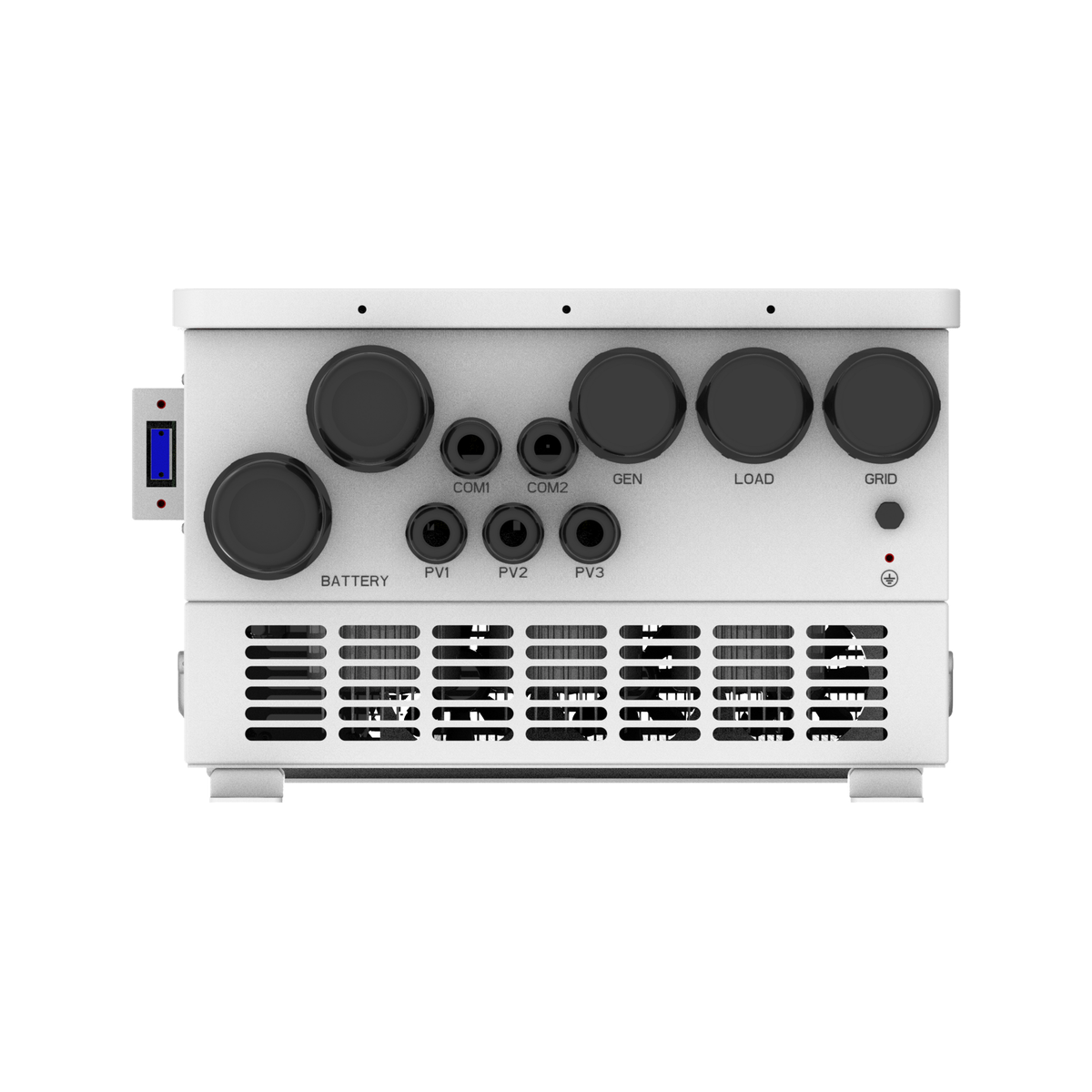

  • Deye SUN-16/18K-SG01LP1-EU-AM3-P connection panel

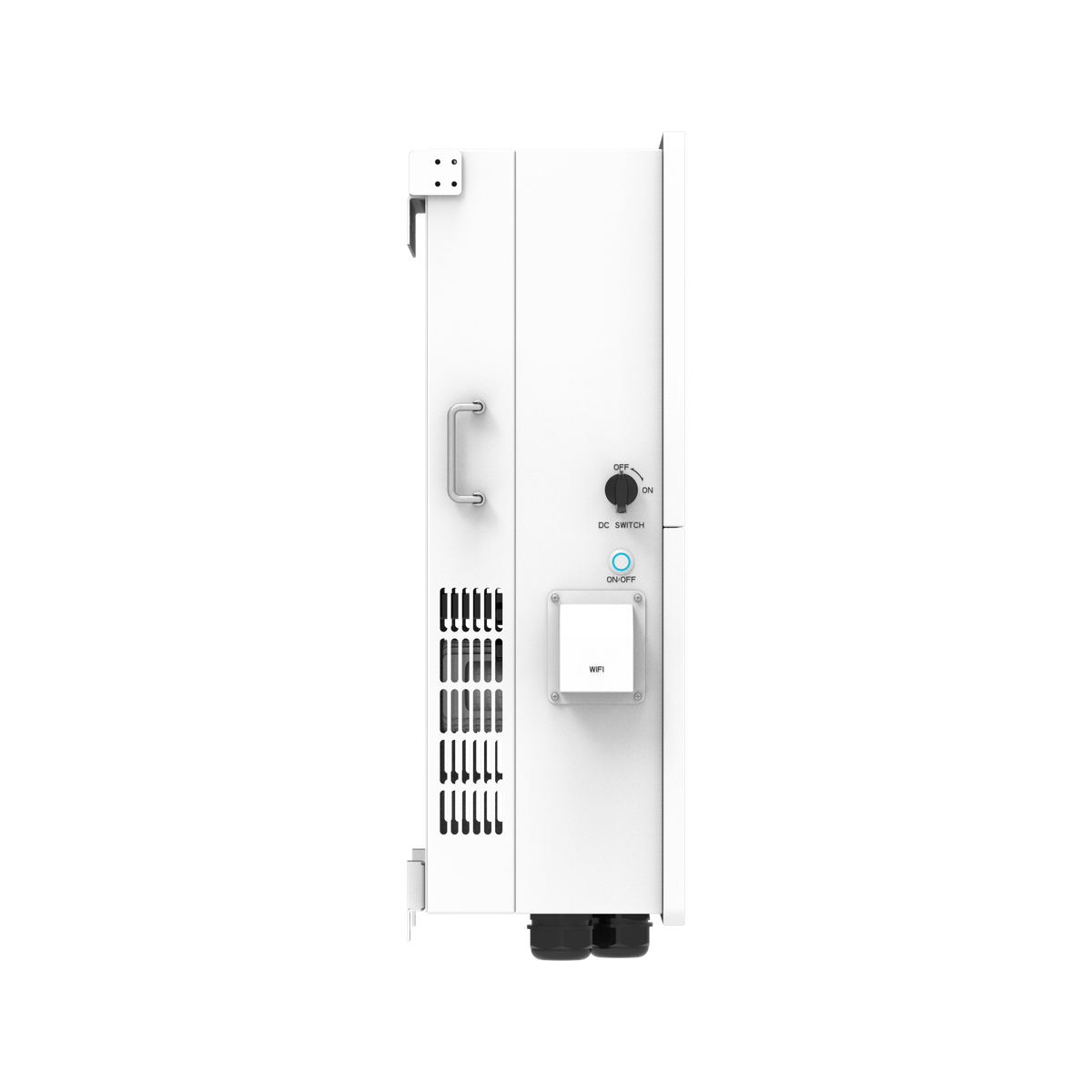

  • Deye SUN-16/18K-SG01LP1-EU-AM3-P side

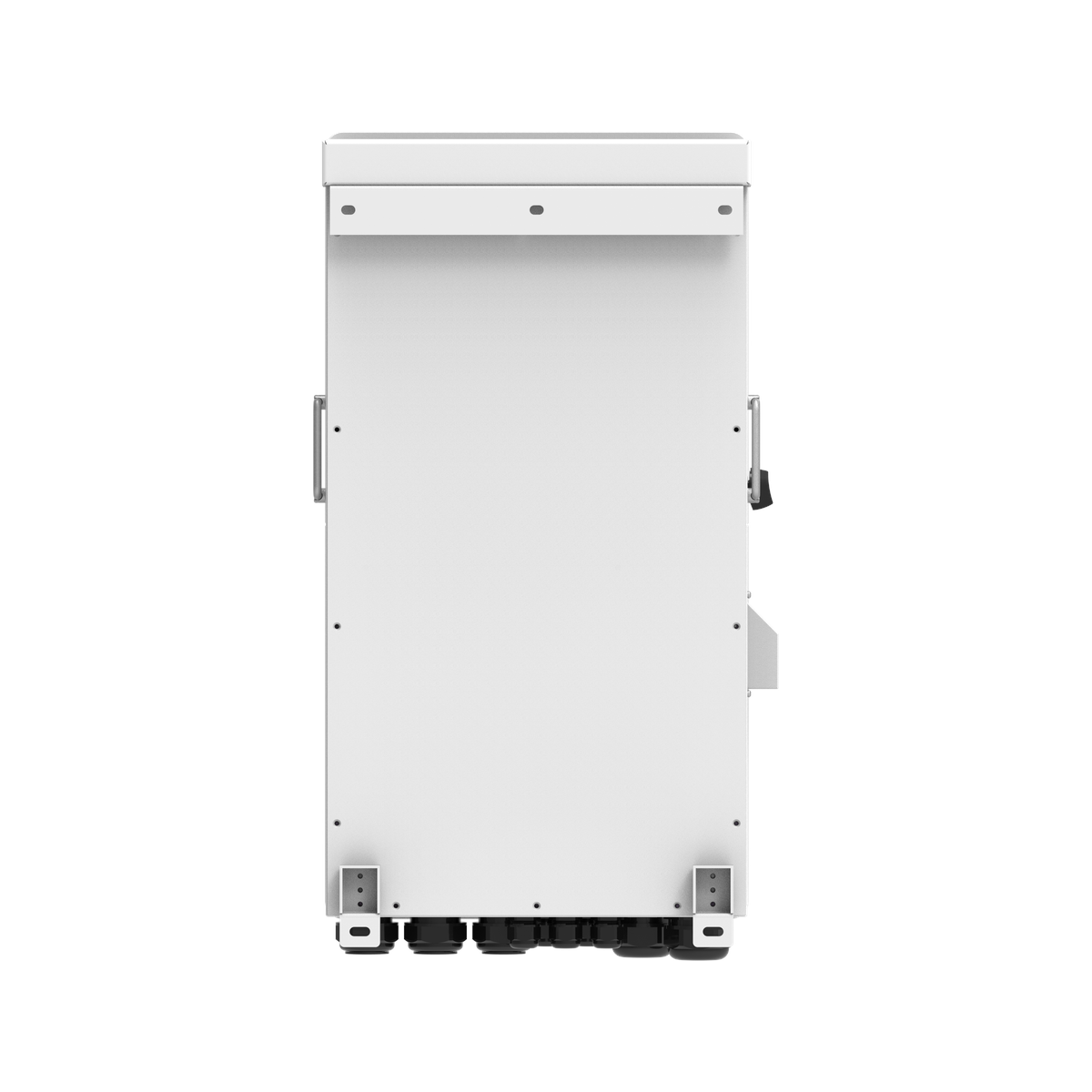

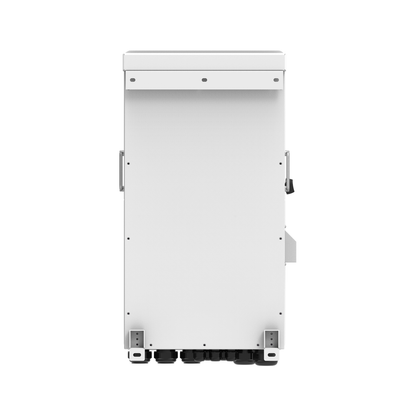

  • Deye SUN-16/18K-SG01LP1-EU-AM3-P back
Model
$1,917.33
$1,917.33
Tax included.

Single-phase low-voltage hybrid — SUN-16K-SG01LP1-EU-AM3-P and SUN-18K-SG01LP1-EU-AM3-P. Rated 16 kW or 18 kW · 3 MPPT · battery 290 A or 380 A · IP65.

Key specifications

Models

SUN-16K-SG01LP1-EU-AM3-P · SUN-18K-SG01LP1-EU-AM3-P

Rated AC

16 kW or 18 kW · single-phase 220/230 V

Max. apparent

16K 17.6 kVA · 18K 19.8 kVA

PV access

16K 32 kW · 18K 36 kW

PV input

16K 25.6 kW · 18K 28.8 kW

MPPT

3 trackers · 2 strings each · 36 A per MPPT

Battery

40–60 V · 16K 290 A · 18K 380 A · lead-acid or lithium · isolated battery side

Enclosure

IP65 · −40 to +60°C · derating above 45°C

Battery

Lead-acid or lithium · 40–60 V. Max. charge / discharge 290 A on the 16K and 380 A on the 18K. Two battery inputs. The battery side is isolated. Usable current follows the battery and its BMS. Multiple batteries can run in parallel.

PV and AC

3 MPPT trackers, 2 strings each (2+2+2). Max. operating input current 36 A per MPPT. Max. PV access 32 kW (16K) or 36 kW (18K). Max. PV input 25.6 kW (16K) or 28.8 kW (18K). Rated AC output is 16 kW or 18 kW, single-phase 220/230 V. Max. apparent power 17.6 kVA or 19.8 kVA. AC coupling can add this hybrid and a battery beside an existing PV inverter on the AC bus. Compatibility needs a system design review.

Schedule, backup, and enclosure

Six configurable battery charge and discharge periods. Any tariff example is illustrative. Up to 16 units in parallel, on-grid and off-grid, subject to system design. Diesel generator energy storage. Off-grid peak is 2× rated power for 10 seconds. IP65. Color touch LCD. Wi-Fi, RS485, and CAN. Operating temperature −40 to +60°C, derating above 45°C. Max. continuous AC passthrough is 100 A on the 16K and 200 A on the 18K.

Datasheet

Download datasheet

Deye SUN-16/18K-SG01LP1-EU-AM3-P

$1,917.33

  • Rated AC

    16/18kW

    Single-phase 220/230 V

  • MPPT

    3

    2 strings · 36 A each

  • Battery current

    290/380A

    16K / 18K · 40–60 V

  • Enclosure

    IP65

    −40 to +60°C

Rated Power for the Whole Home

Single-phase output

Rated Power for the Whole Home

The 16K is rated 16 kW. The 18K is rated 18 kW. Both are single-phase hybrids on a 220/230 V supply (L+N+PE).

Off-grid peak is 2× rated power for 10 seconds. That peak covers short load starts. It does not raise the continuous rating, and it still depends on the battery and the rest of the system.

  • 16 kW SUN-16K rated AC
  • 18 kW SUN-18K rated AC
  • 2× off-grid peak
  • 10 s peak duration
Three MPPTs, Two Strings Each

Three trackers

Three MPPTs, Two Strings Each

Three MPPT trackers, with two strings on each tracker (2+2+2). Max. operating PV input current is 36 A per MPPT.

That is one current limit per tracker, not a separate tracker for every module. Different roof faces can sit on different trackers instead of sharing a single string voltage.

  • 3 MPPT trackers
  • 2 strings per MPPT
  • 36 A per MPPT
  • 2+2+2 string layout
PV Access and PV Input, by Model

Access and input

PV Access and PV Input, by Model

Max. PV access power and max. PV input power are different limits, and each pair belongs to one model.

The 16K allows 32 kW of PV access and 25.6 kW of PV input. The 18K allows 36 kW of PV access and 28.8 kW of PV input. Size the array to the model you select. Access is the higher figure. Input is the lower one.

  • 32 kW 16K max. PV access
  • 25.6 kW 16K max. PV input
  • 36 kW 18K max. PV access
  • 28.8 kW 18K max. PV input
Charge Current Follows the Model

Low-voltage battery

Charge Current Follows the Model

Battery voltage is 40–60 V, lead-acid or lithium. The battery side is isolated. There are two battery inputs.

Max. charge and discharge is 290 A on the 16K and 380 A on the 18K. Those currents are not interchangeable. Usable current still follows the battery and its BMS.

  • 290 A 16K max. charge / discharge
  • 380 A 18K max. charge / discharge
  • 40–60 V battery range
  • 2 battery inputs
Six Windows for Charge and Discharge

Six periods

Six Windows for Charge and Discharge

Six configurable battery charge and discharge periods. Set them around the tariff and the way the site uses power through the day.

Where peak and off-peak prices apply, charging can sit in the cheaper windows and discharge can cover the expensive ones. Any tariff shown with this product is illustrative. The schedule follows the times you set.

  • 6 charge / discharge periods
  • Tariff illustrative only
  • Daily use sets the windows
Storage on the AC Side of Existing PV

Storage retrofit

Storage on the AC Side of Existing PV

AC coupling is a retrofit path. An existing PV inverter stays on the AC bus, and this hybrid plus a battery join that bus. The array does not have to be rebuilt for storage to be added.

Compatibility is not automatic. The existing inverter, this hybrid, and the battery need a system design review before installation.

  • Existing PV inverter stays
  • AC bus coupling point
  • Hybrid + battery storage added
  • Review system design
Scale the System, On-Grid or Off-Grid

Parallel and generator

Scale the System, On-Grid or Off-Grid

Up to 16 units in parallel, for on-grid and off-grid operation. Multiple batteries can run in parallel on the storage side. Adding units is subject to system design.

Diesel generator energy can be stored, so a generator is another path into the battery, not only a direct backup source.

  • 16 max. parallel units
  • On-grid and off-grid
  • Generator energy storage
  • Design required
Outdoor Cabinet, Local Control, Open Comms

Outdoor enclosure

Outdoor Cabinet, Local Control, Open Comms

IP65 means the cabinet is dust-tight and protected against water jets, so it can be mounted outdoors. A color touch LCD is on the unit for local control.

Communication is Wi-Fi, RS485, and CAN. Operating temperature is −40°C to +60°C, with power derating above 45°C.

  • IP65 ingress
  • LCD color touch
  • Wi-Fi RS485 / CAN
  • >45°C derating
SPECIFICATIONS

Technical data

Parameter SUN-16K-SG01LP1-EU-AM3-P SUN-18K-SG01LP1-EU-AM3-P
Rated AC active power 16 kW 18 kW
Off-grid peak 2× rated power, 10 s 2× rated power, 10 s
MPPT / strings / current 3 / 2+2+2, 36 A per MPPT 3 / 2+2+2, 36 A per MPPT
Max. PV access power 32 kW 36 kW
Max. PV input power 25.6 kW 28.8 kW
Battery voltage 40–60 V 40–60 V
Max. battery charge / discharge current 290 A 380 A
Max. continuous AC passthrough 100 A 200 A
Cabinet size (W×H×D) 464×763×282 mm 464×863×282 mm
Ingress protection IP65 IP65
Max. parallel units Up to 16 Up to 16
Operating temperature −40 to +60°C, derating above 45°C −40 to +60°C, derating above 45°C
