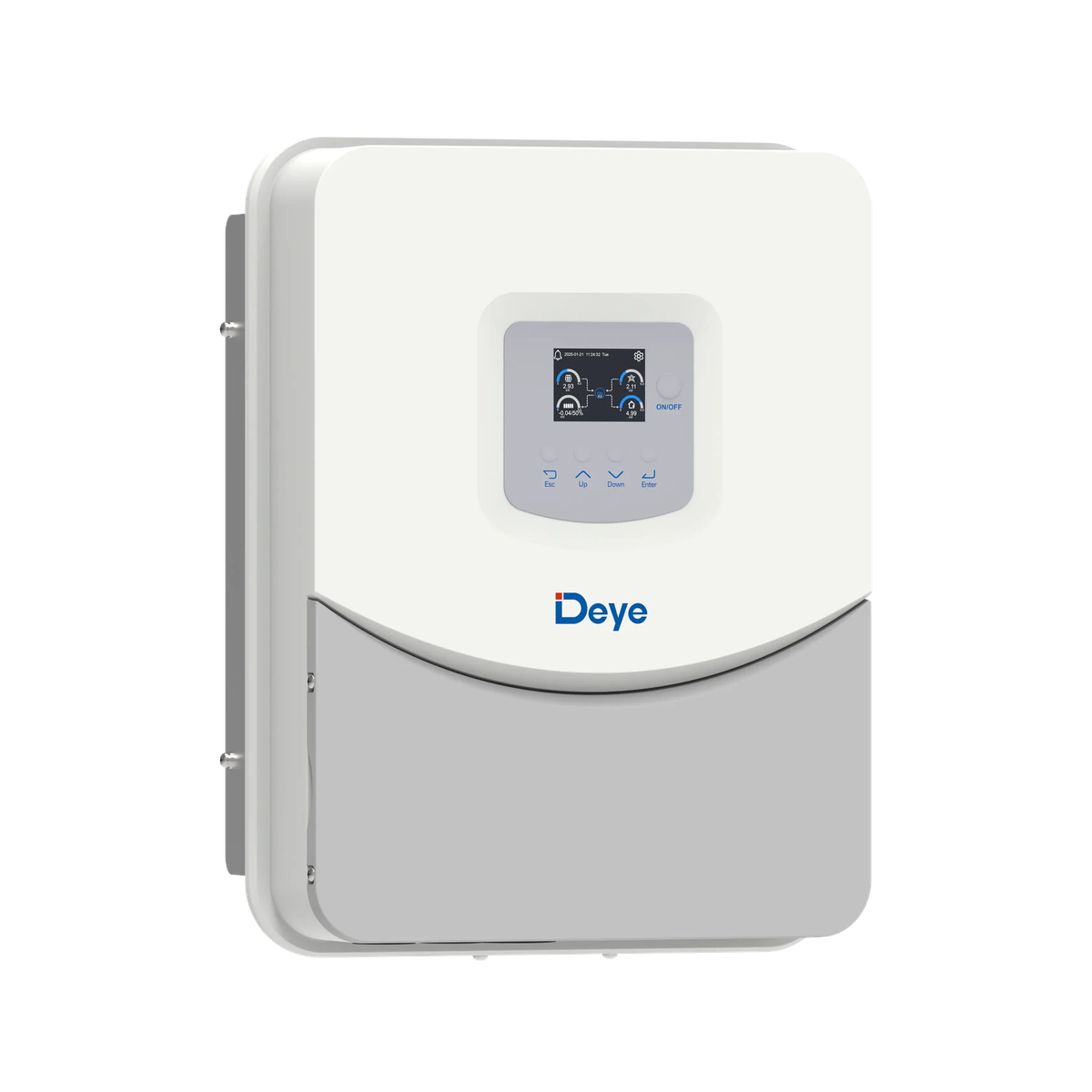

Deye SUN-6.6K-OG03LP1-EU-AM2 | Off-Grid Inverter

$379.61
Power
$379.61
$379.61
Tax included.

Single-phase off-grid inverter for home solar-plus-storage. SUN-6.6K-OG03LP1-EU-AM2 — 140 A charge/discharge, 2× PV oversizing, 200% peak output, 4 ms switching.

Key specifications

Series

SUN-6.6K-OG03LP1-EU-AM2

Featured model

6.6 kW single-phase off-grid

Max. efficiency

97.6% (Euro 96.5%, MPPT >99%)

Battery

Lead-acid or Li-ion · 40–60 V · 140 A charge/discharge

PV / MPPT

2× oversizing · Voc 500 V · MPPT 150–425 V · 2 MPPTs (1+1)

Peak / parallel

200% for 10 s · max. 16 inverters in parallel

Ingress / weight

IP65 · 8.6 kg · <46 dB

Warranty

5 years

Battery and charge

Lead-acid or lithium-ion, 40–60 V. Max. charge/discharge 140 A on SUN-6.6K-OG03LP1-EU-AM2. BMS self-adaptation, one battery input. Grid or generator energy can charge the battery (max 6600 W to battery).

PV and AC output

Max. PV access 13200 W / input 10560 W. Voc 500 V, start-up 125 V, MPPT 150–425 V, rated 370 V. 2 MPPTs (1+1), 18+18 A operating. Pure sine AC 230 V L+N+PE, 50/60 Hz, THDi <3%. Peak 2× rated for 10 s. Rated / max AC 6600 VA·W · 28.7 A.

Protection and interface

Integrated DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, DC component monitoring, insulation impedance detection. Type II surge on DC and AC. LCD; Wi-Fi & Bluetooth, RS485, CAN. IP65, −40 to +60°C, intelligent air cooling, 5-year warranty.

Deye SUN-6.6K-OG03LP1-EU-AM2 | Off-Grid Inverter

$379.61

  • Up to

    97.6%

    max. conversion efficiency

  • Max.

    140 A

    battery charge / discharge

  • Up to

    16

    units in parallel

  • Rated

    6.6 kW

    AC output power

Lightweight cabinet that installs without heavy lifting.

Home-ready design

Lightweight cabinet that installs without heavy lifting.

Only 8.6 kg with a layered, curved Home-Ready look. Built for balcony, garage, and small plant rooms where every kilogram and every fixing counts.

  • 8.6 kg cabinet weight
  • 323×424×176 mm (excl. connectors)
  • IP65 dust & water
  • <46 dB noise
140 A battery current on the 6.6K AM2.

Powerful charge / discharge

140 A battery current on the 6.6K AM2.

SUN-6.6K-OG03LP1-EU-AM2 pushes 140 A charge/discharge into 40–60 V lead-acid or lithium storage, with BMS self-adaptation on a single battery input.

  • 140 A charge / discharge
  • 40–60 V battery window
  • BMS self-adaption
  • 1 battery input
Harvest more from high-current modules with dual MPPT.

2× PV oversizing

Harvest more from high-current modules with dual MPPT.

Design PV access up to twice rated power: 13.2 kW access / 10.56 kW input, Voc 500 V, MPPT 150–425 V, 2 trackers (1+1) — ready for modern high-current strings.

  • 2× PV oversizing
  • 13.2 kW 6.6K PV access
  • 2 MPPT trackers (AM2)
  • 500 V max. PV voltage
Start demanding loads with twice rated power for 10 seconds.

200% peak output

Start demanding loads with twice rated power for 10 seconds.

Pure sine wave AC at 230 V with THDi under 3%. Peak output at 2× rated for 10 s helps pumps, compressors, and other surge loads without a larger continuous rating.

  • 200% peak / 10 s
  • Pure sine waveform
  • <3% THDi
  • 230 V L+N+PE

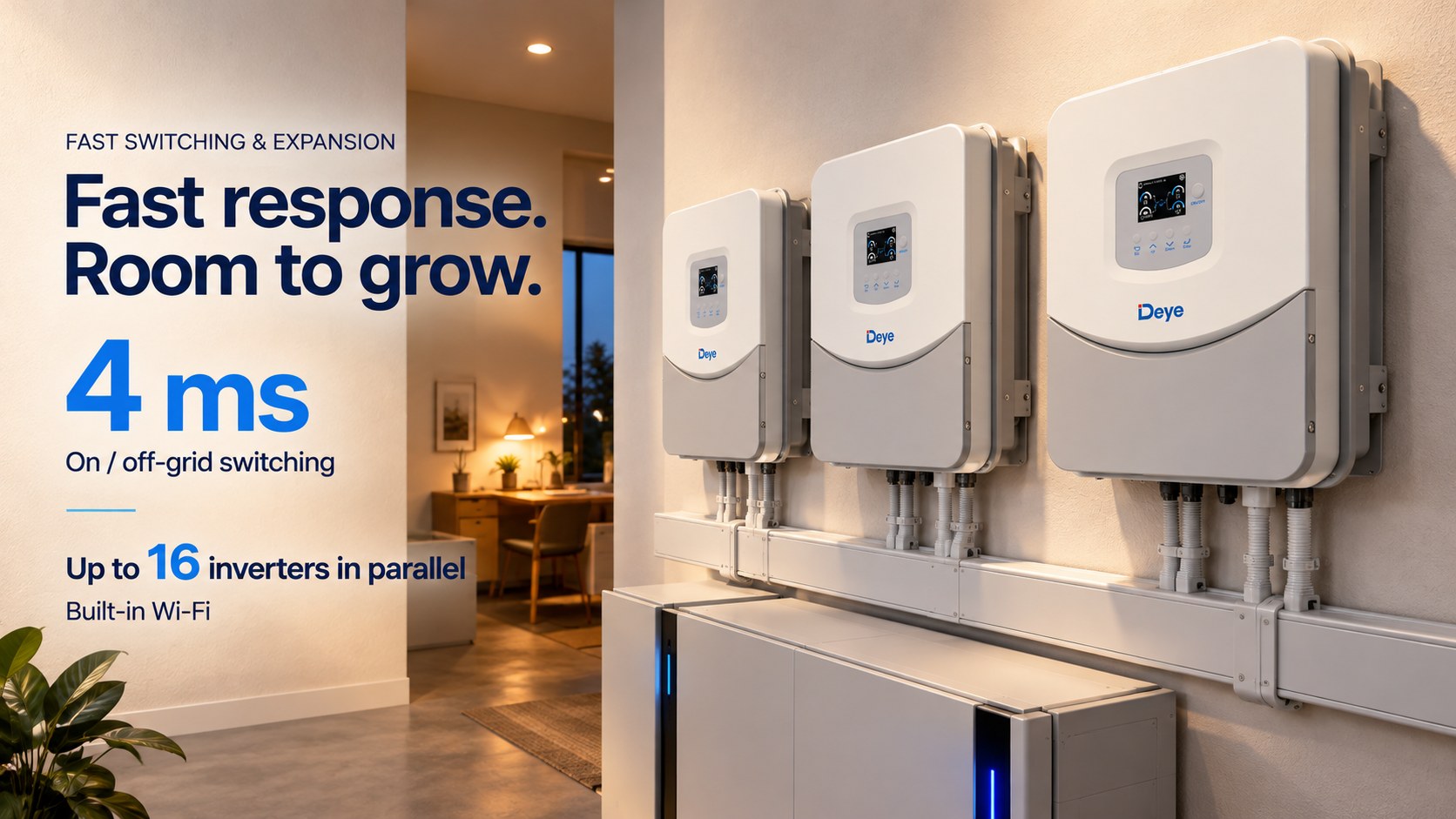

4 ms on/off-grid changeover, then grow to sixteen units.

Fast switching & scale

4 ms on/off-grid changeover, then grow to sixteen units.

Protect sensitive loads with 4 ms switching. Expand to max. 16 inverters and 32 batteries in parallel as the site grows. Built-in Wi-Fi — no extra logger for basic monitoring.

  • 4 ms on/off-grid switch
  • 16 inverters parallel
  • 97.6% max. efficiency
  • Wi-Fi built-in
IP65 enclosure with Type II surge and full protection suite.

Protected outdoors

IP65 enclosure with Type II surge and full protection suite.

Outdoor-ready IP65 with Type II DC/AC surge, reverse polarity, overcurrent, thermal, and insulation monitoring. LCD on the door; RS485 / CAN / Wi-Fi & Bluetooth for plant links.

  • IP65 ingress rating
  • Type II DC / AC surge
  • −40~+60°C operating range
  • 5 years warranty
Specifications

Technical data

Figures from the Deye OG03LP1-EU-AM2 datasheet (2026-10-15) for SUN-6.6K. Store price is an inquiry placeholder — confirm FOB before order. Nigeria market only.

Model SUN-6.6K-OG03LP1-EU-AM2
Rated AC output 6600 VA·W · 28.7 A · 230 V L+N+PE · 50/60 Hz
Max. charge/discharge 140 A
Max. / Euro / MPPT efficiency 97.6% / 96.5% / >99%
Battery Lead-acid or Li-ion · 40–60 V · 1 input · BMS self-adaption
PV Access 13200 W · Input 10560 W · Voc 500 V · MPPT 150–425 V · 2/1+1 · 18+18 A
AC output Pure sine · THDi <3% · peak 2× rated, 10 s
Grid / generator to battery Max 6600 W · Grid/Gen input 35 A
Switching / parallel 4 ms on/off-grid · max. 16 inverters / 32 batteries
Cabinet IP65 · 323×424×176 mm · 8.6 kg · intelligent air cooling · <46 dB
Interface LCD · Wi-Fi&BT / RS485 / CAN
Warranty 5 years

Which model is this listing?

This listing is the single SKU SUN-6.6K-OG03LP1-EU-AM2: 6.6 kW rated AC, 140 A charge/discharge, 2× PV oversizing, IP65, 8.6 kg.

Is this a hybrid or off-grid inverter?

OG03LP1 is Deye’s off-grid single-phase series (grid/generator input to battery supported). It is not the three-phase SG01HP3 hybrid platform.

Does it support a diesel generator?

Yes. Generator (and grid) input can charge the battery — on 6.6K, max input power to battery is 6600 W with 35 A generator input current.

How many units can I parallel?

Up to 16 inverters and 32 batteries in parallel. On/off-grid switching is specified at 4 ms.

What warranty is included?

5 years per the datasheet. Confirm terms for the installation country with Deye warranty policy.
