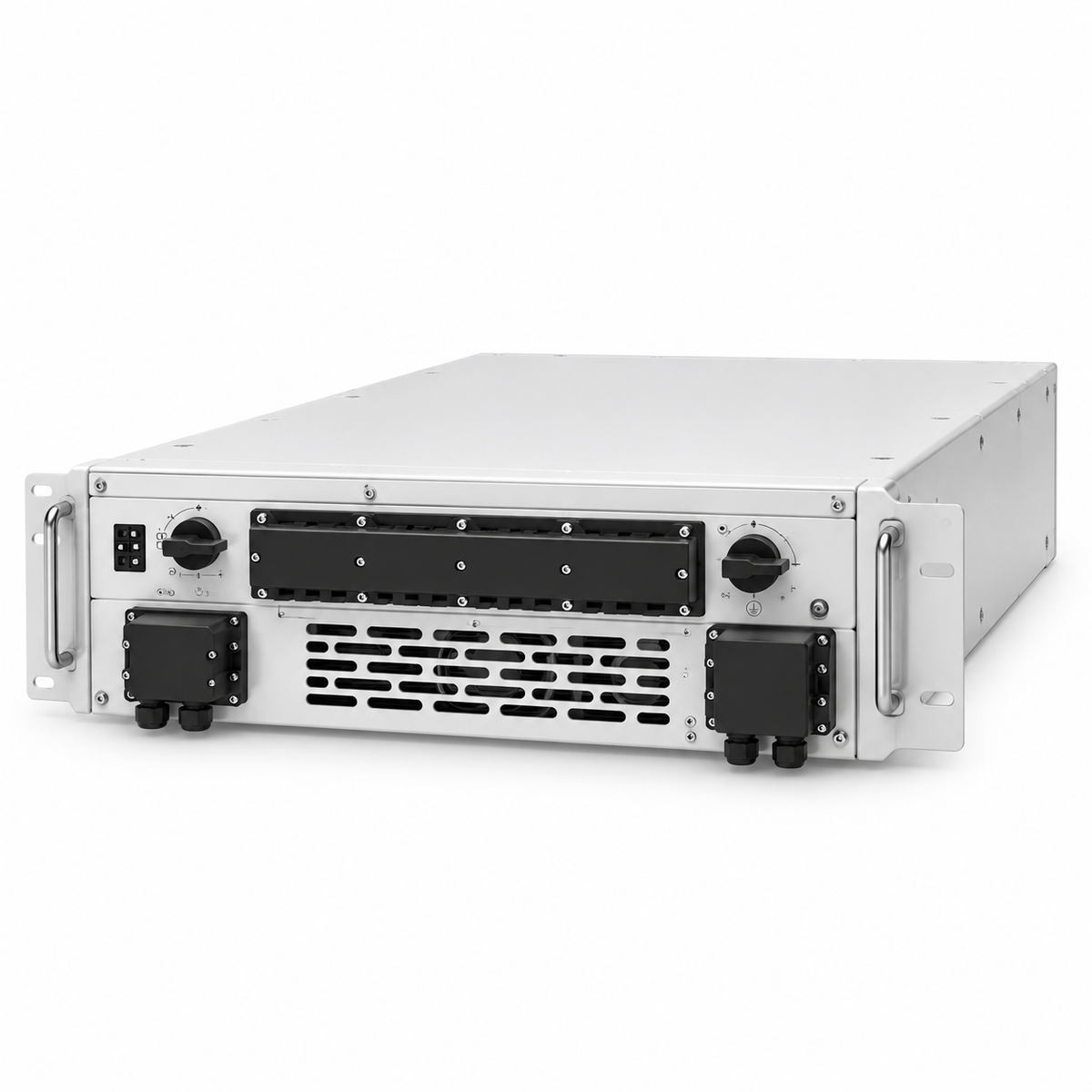

Deye SUN-MPPT-L01-EU-AM8 | 8-MPPT C&I Module

$1,896.02
$1,896.02
$1,896.02
Tax included.

C&I 8-MPPT module for modular ESS — SUN-MPPT-L01-EU-AM8. Max. PV access 200 kWp · max. PV input 160 kW · MPPT efficiency >99.9% · pairs with SUN-100/125K-PCS01HP3.

Key specifications

Model

SUN-MPPT-L01-EU-AM8

MPP trackers

8 · max. operating current 40 A / tracker · short-circuit 60 A / tracker

PV power

Max. PV access 200 kWp · max. PV input 160 kW (listed separately)

MPPT voltage

180–750 V · full-load MPPT 450–750 V · rated 600 V · start-up 200 V · max. input 800 V

Efficiency

MPPT >99.9% · max. conversion >99%

DC output

630–1000 V · max. 200 A · CAN / RS485

Ingress / cooling

IP65 · intelligent air cooling · −40 to +60°C · 543×198×700 mm · 41.75 kg

Warranty

10 years (subject to local policy)

PV input and MPPT

8 MPP trackers. Max. operating PV input current 40 A per tracker; max. short-circuit current 60 A per tracker. MPPT voltage range 180–750 V (full-load MPPT 450–750 V). Max. PV access power 200 kWp; max. PV input power 160 kW — these are different ratings. String design must satisfy voltage, current and short-circuit limits together. 8 trackers ≠ 8 modules only.

DC output and protection

DC output 630–1000 V, max. DC output current 200 A. Standard protection: DC reverse polarity, DC switch, Type II surge. DC arc protection and Anti-PID are optional — not standard. Efficiency: MPPT >99.9%, max. conversion >99%.

Environment and integration

IP65 · intelligent air cooling · −40 to +60°C · humidity 0–95% · altitude to 4000 m. Cabinet 543×198×700 mm · 41.75 kg · LED · CAN / RS485 · OT terminals. Recommended with SUN-100/125K-PCS01HP3. Built-in EMS (TOU, peak shaving, demand, zero-export) belongs to the PCS, not this MPPT module.

Deye SUN-MPPT-L01-EU-AM8 | 8-MPPT C&I Module

$1,896.02

  • MPP trackers

    8

    independent MPPT channels

  • Max. PV access

    200 kWp

    panel capacity (not continuous output)

  • MPPT efficiency

    >99.9%

    tracking accuracy

  • Ingress

    IP65

    dust & water jet rated

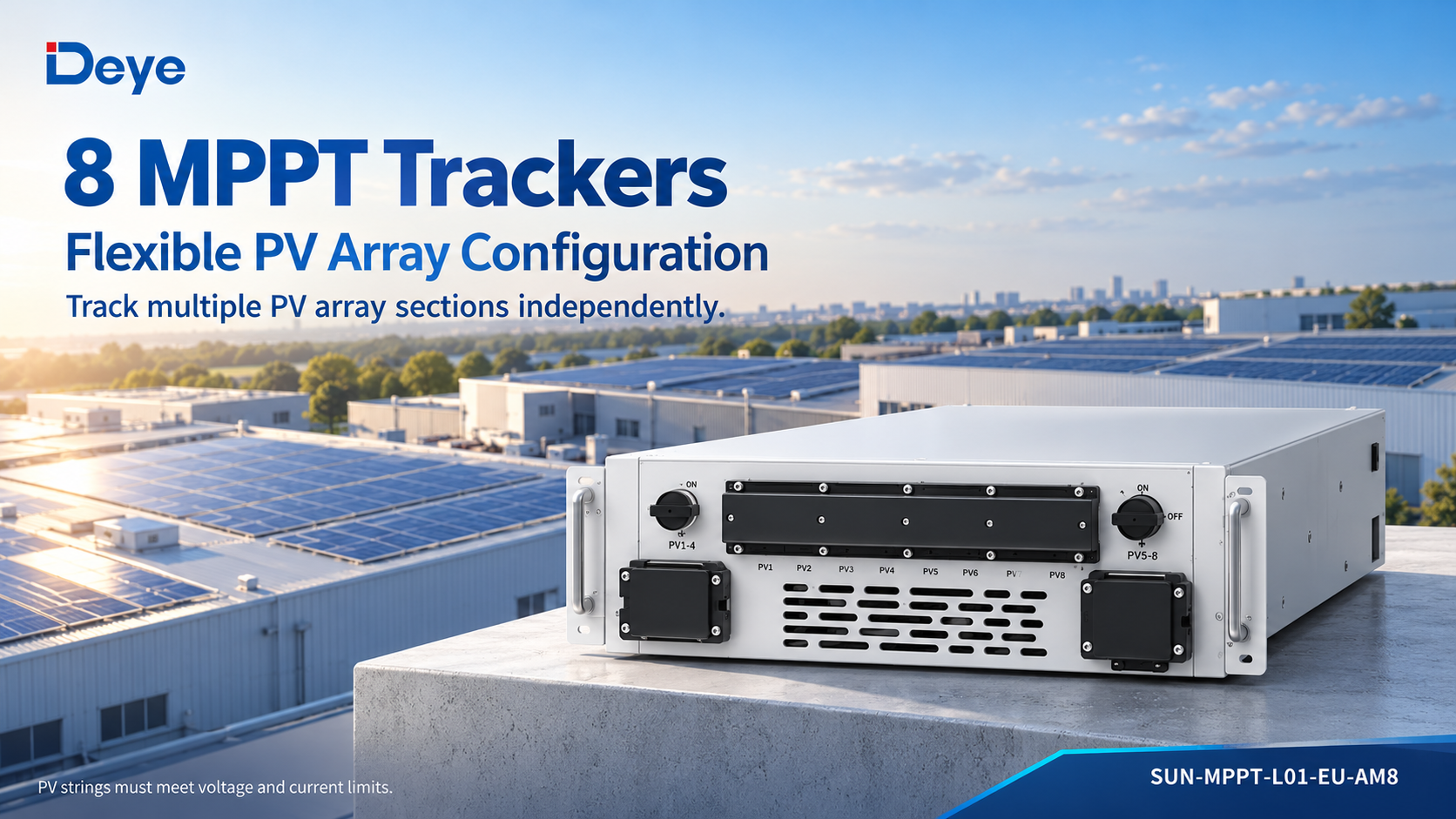

8 MPPT trackers for multi-zone rooftops.

Flexible PV array

8 MPPT trackers for multi-zone rooftops.

Partition strings by orientation or roof zone. Design each string to voltage, current and short-circuit limits — 8 trackers ≠ 8 modules only.

  • 8 MPP trackers
  • Independent array sections

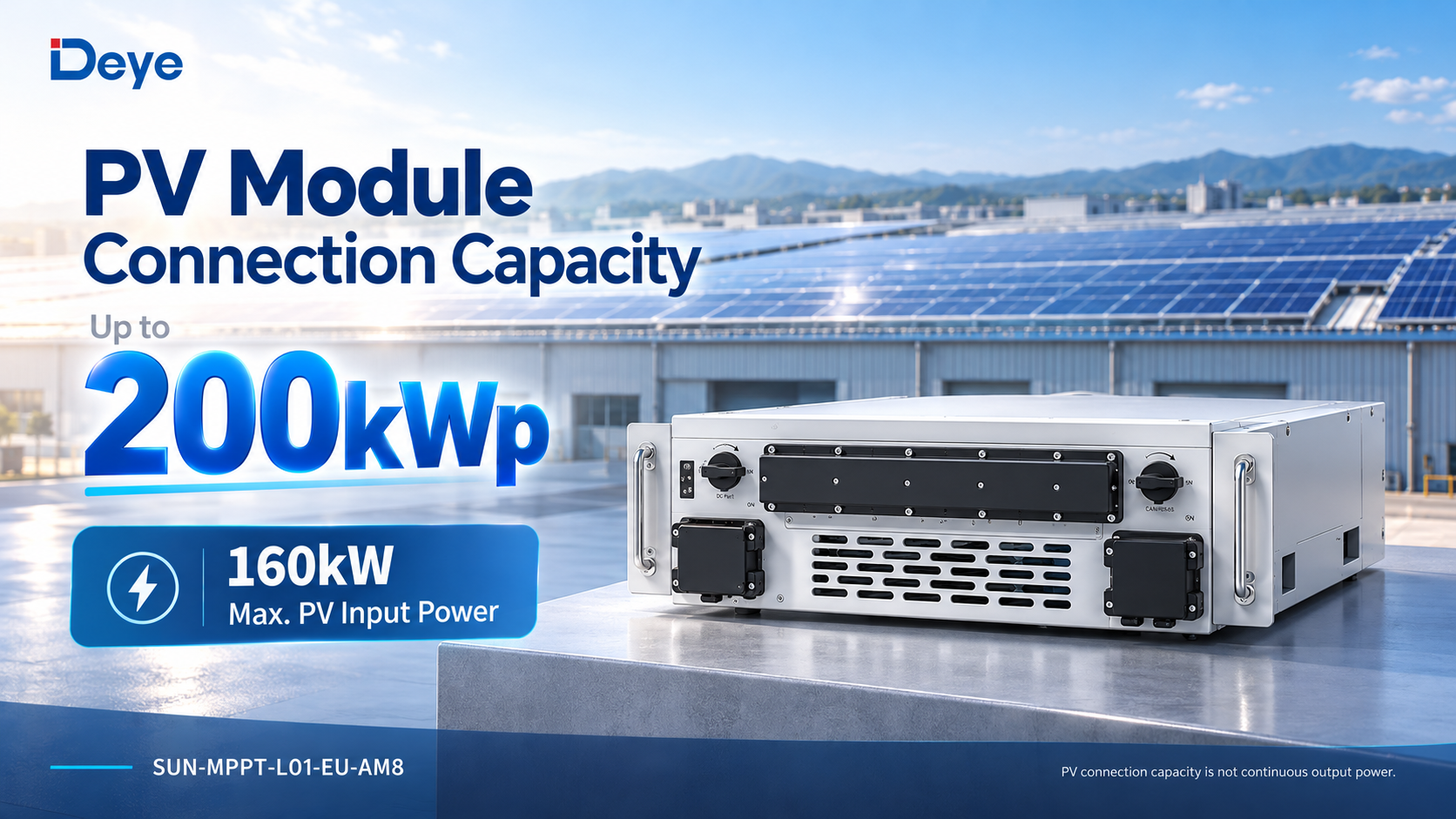

200 kWp access and 160 kW input — listed separately.

PV connection capacity

200 kWp access and 160 kW input — listed separately.

200 kWp is max. PV module connection capacity; 160 kW is max. PV input power. Do not treat access capacity as continuous output.

  • 200 kWp max. PV access
  • 160 kW max. PV input

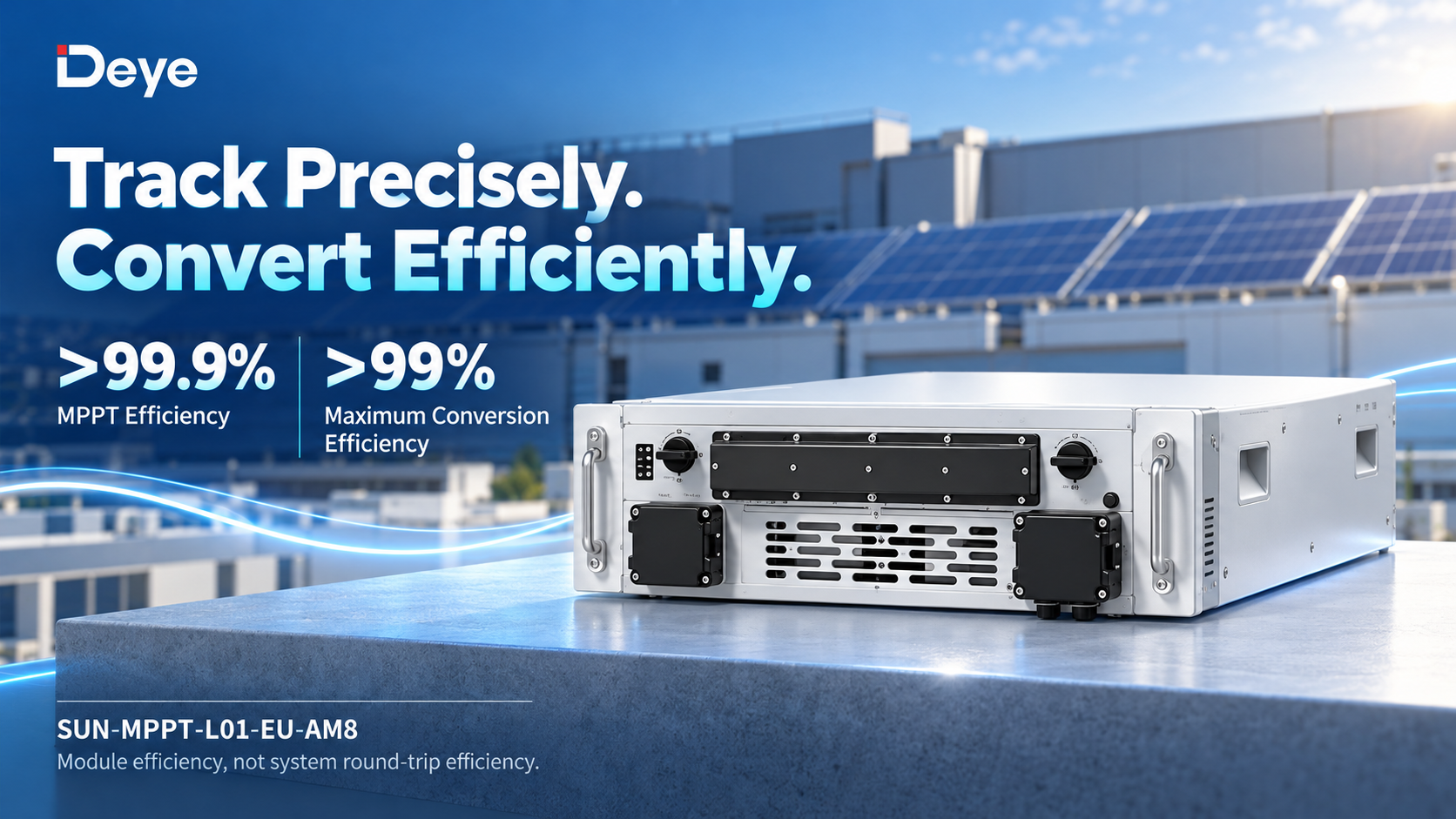

Track precisely. Convert efficiently.

Tracking & conversion

Track precisely. Convert efficiently.

High MPPT tracking accuracy and conversion efficiency cut losses between the array and the DC bus that feeds the PCS and battery.

  • >99.9% MPPT efficiency
  • >99% max. conversion

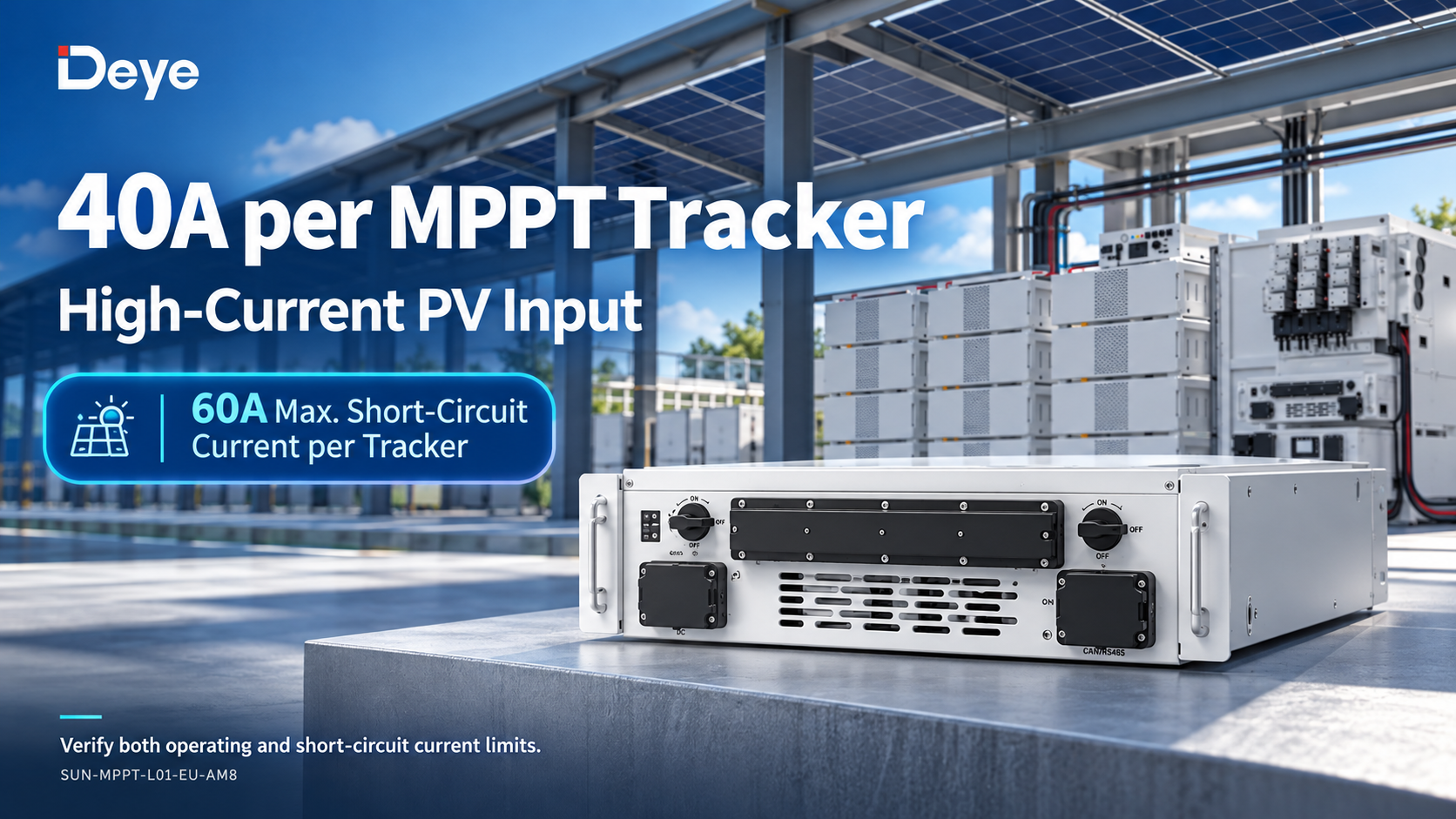

40 A operating current per MPPT tracker.

High-current PV input

40 A operating current per MPPT tracker.

Max. short-circuit current 60 A per tracker. Verify both operating and Isc limits together with string voltage design.

  • 40 A operating / tracker
  • 60 A Isc / tracker

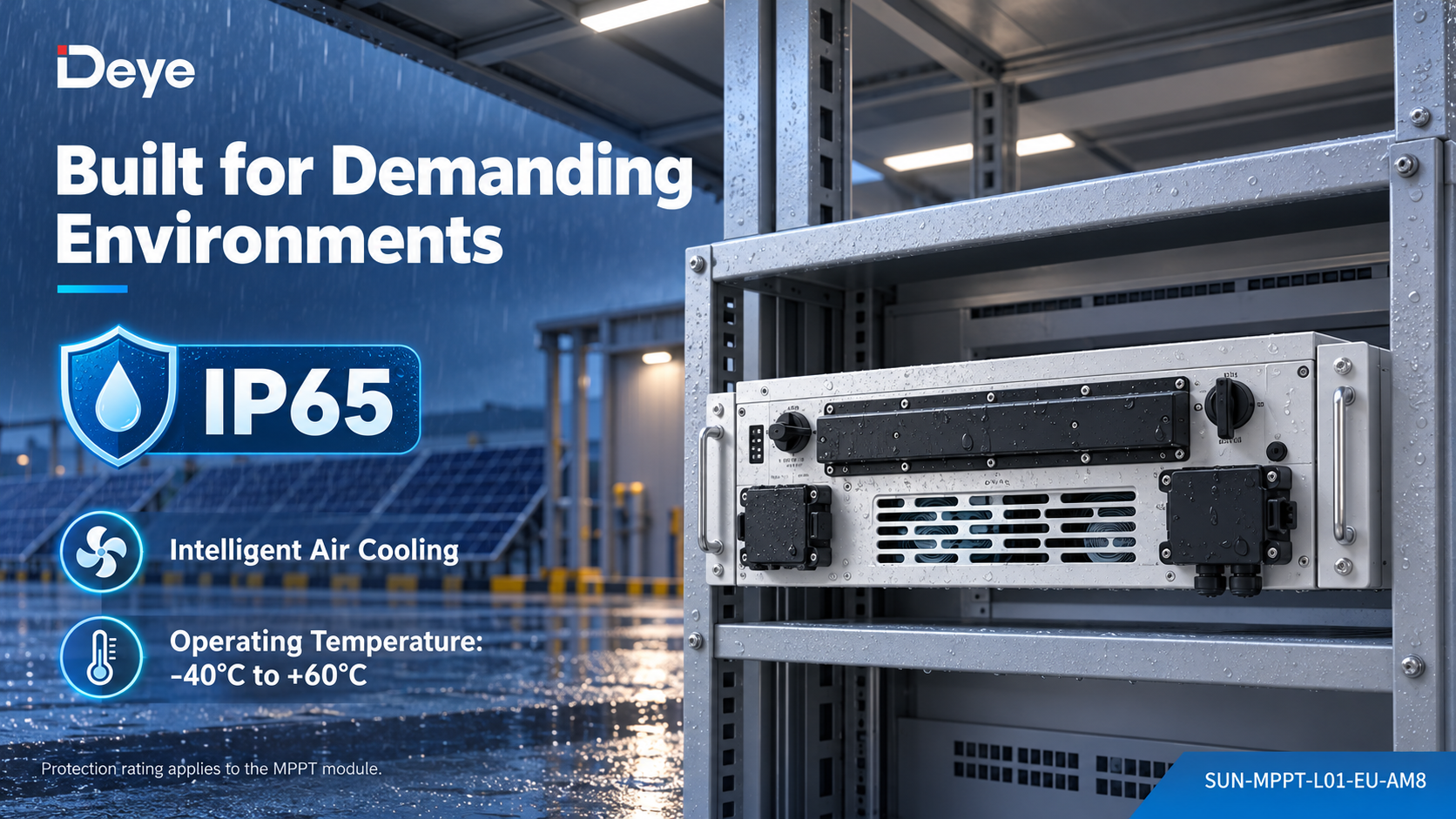

IP65 with intelligent air cooling.

Demanding environments

IP65 with intelligent air cooling.

Dust and water-jet protection for the MPPT module, intelligent air cooling, and −40 to +60°C operating range. Install per site protection requirements.

  • IP65 module ingress
  • −40~60°C operating

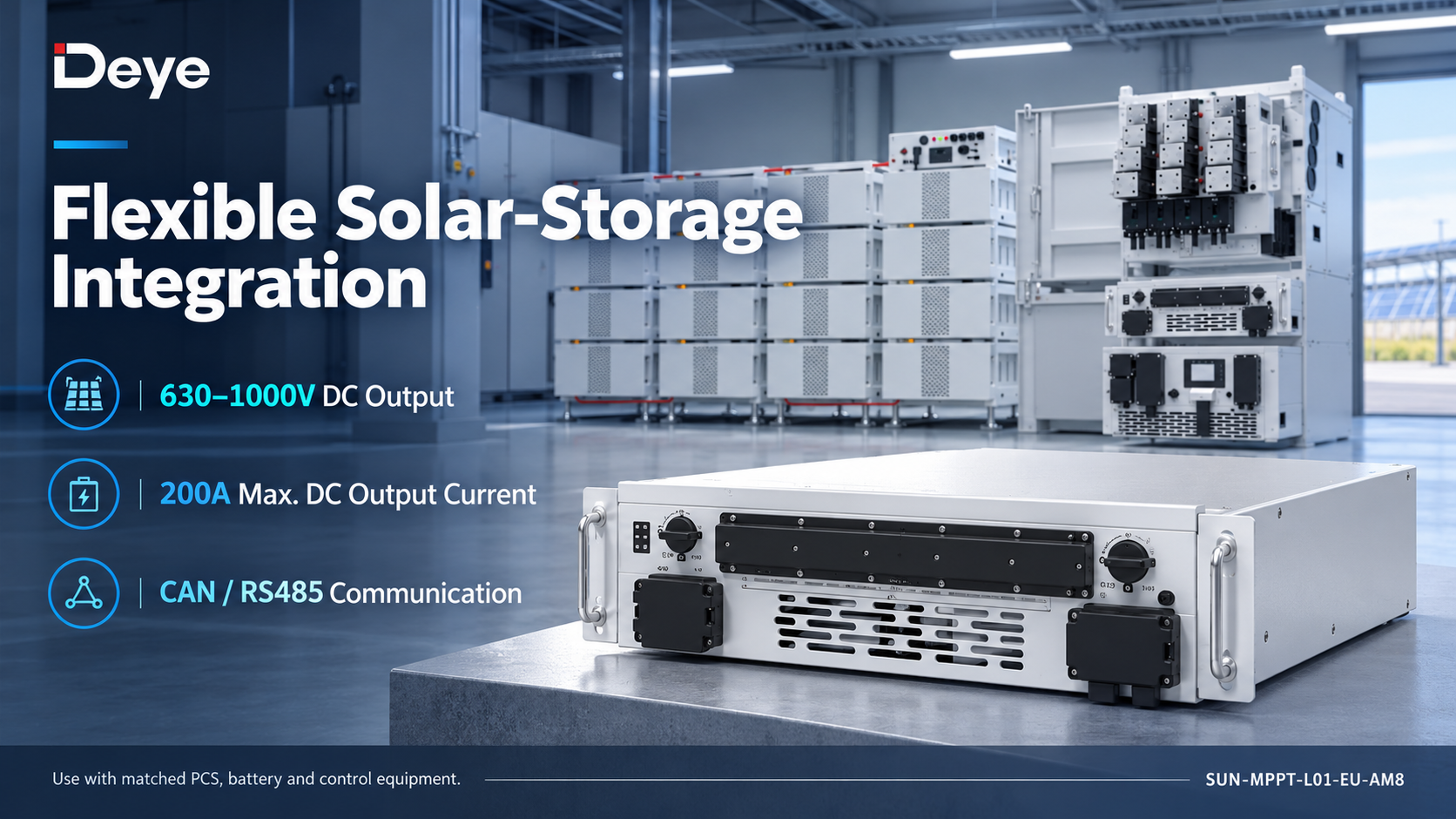

Flexible DC output for PCS, battery and controls.

Solar-storage integration

Flexible DC output for PCS, battery and controls.

DC output 630–1000 V, max. 200 A, CAN / RS485. Pair with matched PCS and battery — recommended SUN-100/125K-PCS01HP3. Built-in EMS lives on the PCS, not this MPPT module.

  • 630–1000 V DC output
  • 200 A max. DC out
  • CAN/RS485 comms
Technical data

SUN-MPPT-L01-EU-AM8 at a glance

Model SUN-MPPT-L01-EU-AM8
MPP trackers 8 · 40 A operating / 60 A Isc per tracker
Max. PV access / input 200 kWp access · 160 kW input (separate ratings)
MPPT voltage 180–750 V (full-load 450–750 V)
Efficiency MPPT >99.9% · max. conversion >99%
DC output 630–1000 V · max. 200 A
Protection DC reverse · DC switch · Type II surge (arc / Anti-PID optional)
Ingress / cooling IP65 · intelligent air cooling · −40 to +60°C
Size / weight 543×198×700 mm · 41.75 kg
Comms / warranty CAN / RS485 · 10 years

What is SUN-MPPT-L01-EU-AM8?

An 8-channel MPPT module for Deye modular C&I ESS. It connects PV arrays to the DC bus shared with PCS and battery — it is not a PCS and does not include EMS.

200 kWp vs 160 kW — which matters?

200 kWp is maximum PV access (module capacity). 160 kW is maximum PV input power. List both; do not treat access capacity as continuous output.

Is this the same as AM10?

No. AM8 is 8 trackers · 40 A · 200 kWp access. Series overview numbers for AM10 (10 trackers / higher current / 250 kWp) do not apply to AM8.

Does AM8 include EMS?

No. Integrated EMS (TOU, peak shaving, demand, zero-export) is a PCS function. Pair with SUN-100/125K-PCS01HP3 for EMS.

Are DC arc and Anti-PID included?

They are optional. Standard protection includes DC reverse polarity, DC switch and Type II surge.
