Deye SUN-29.9/30K-SG02HP3-EU-AM3 | 29.9/30kW Three-Phase HV Hybrid Inverter

€1.795,95

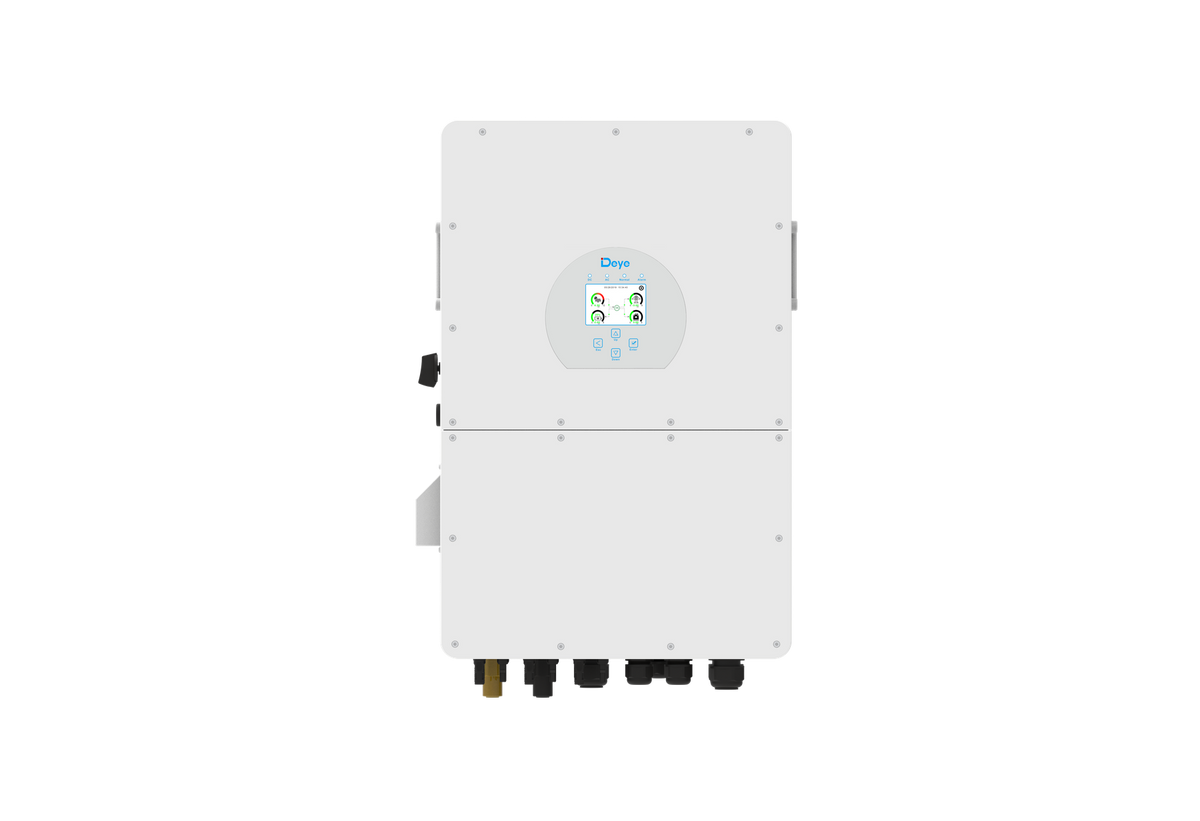

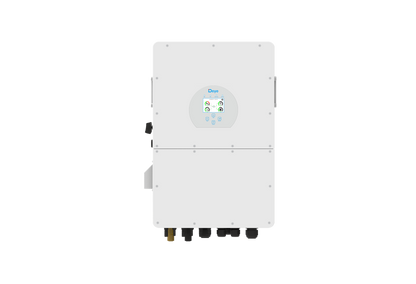

  • Deye SUN-SG02HP3-EU-AM3 front view

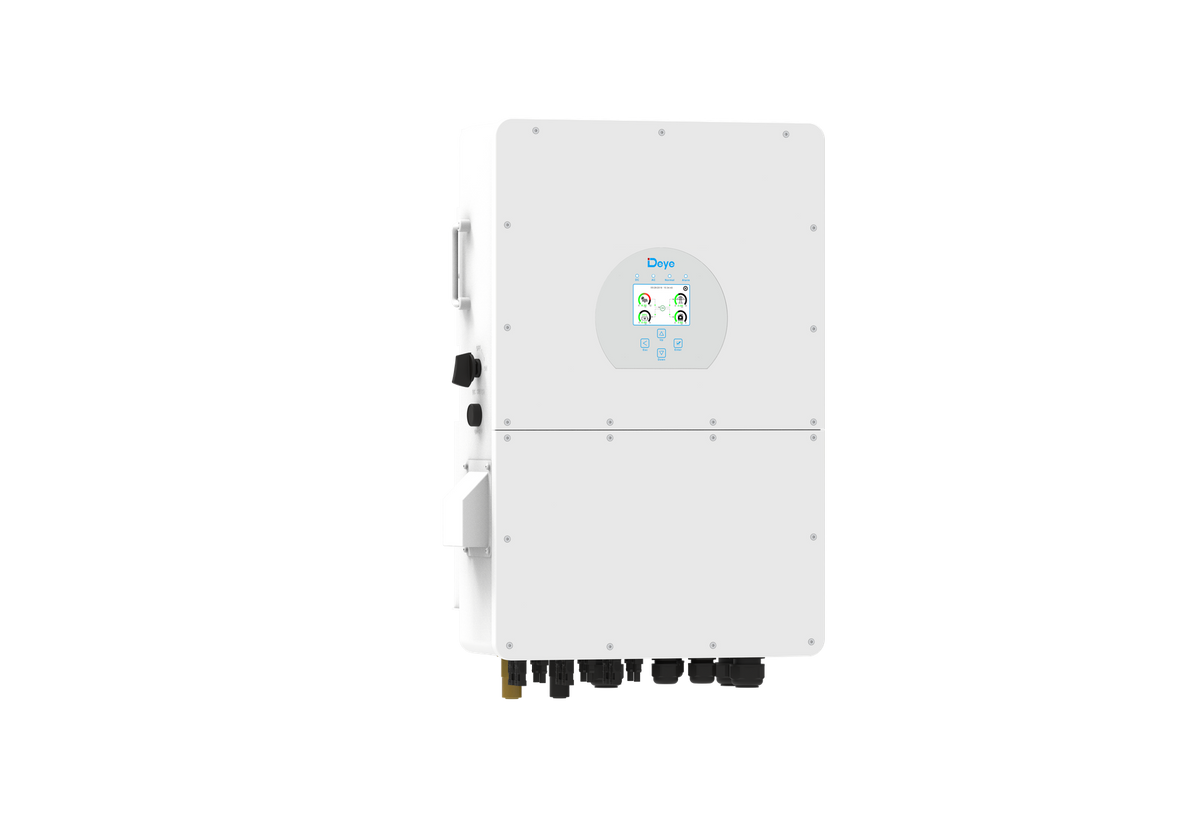

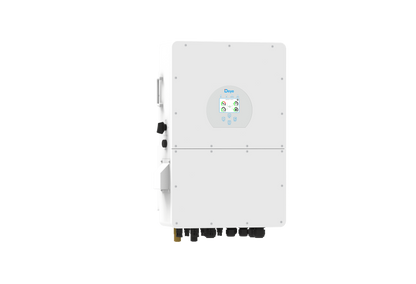

  • Deye SUN-SG02HP3-EU-AM3 angle view

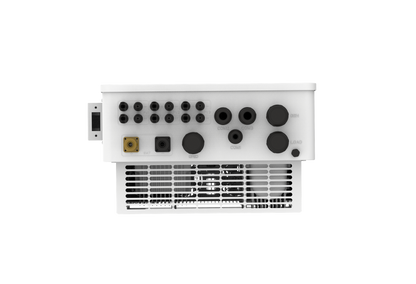

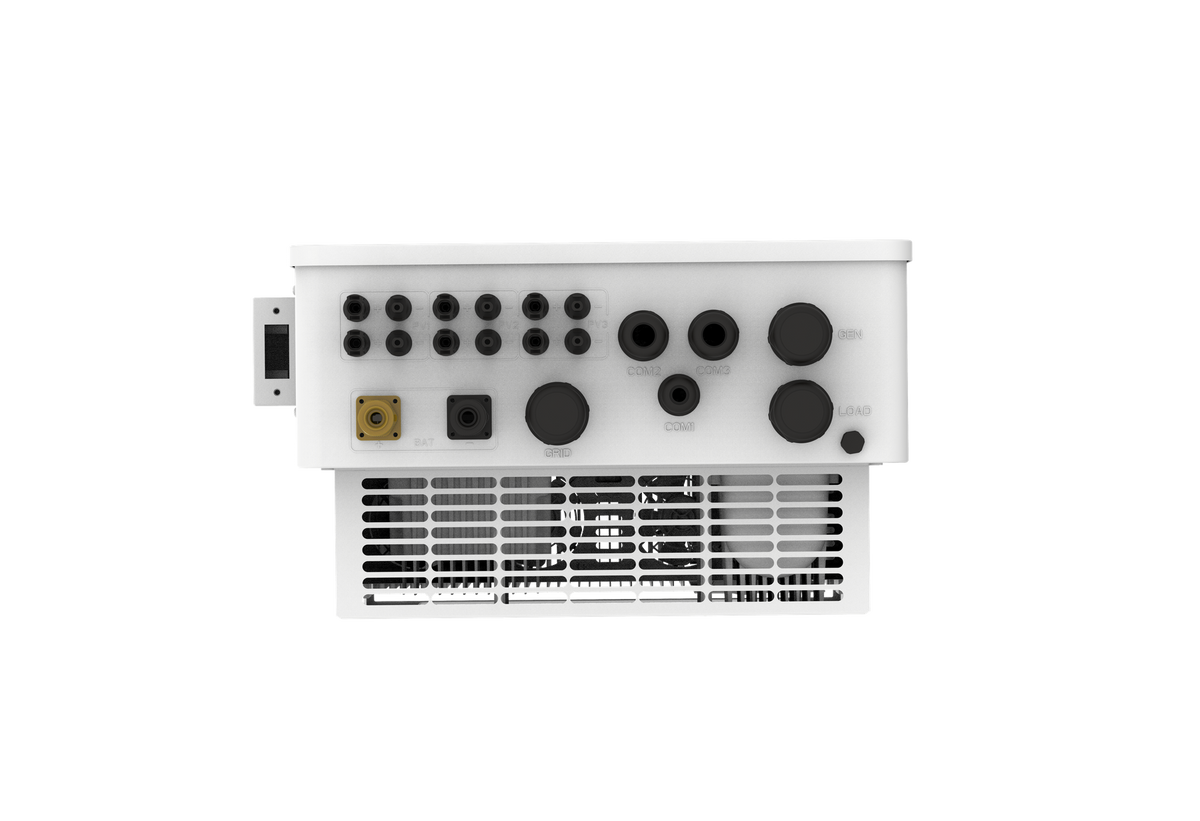

  • Deye SUN-SG02HP3-EU-AM3 bottom ports

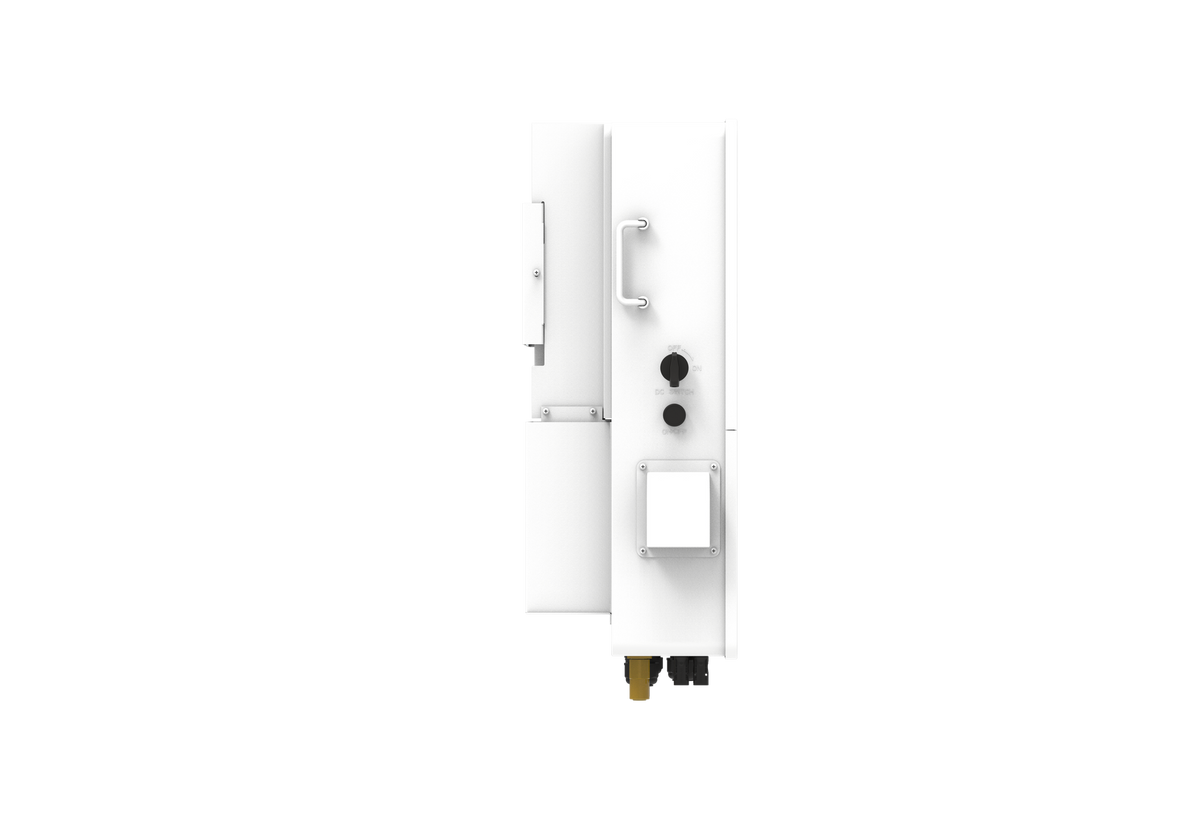

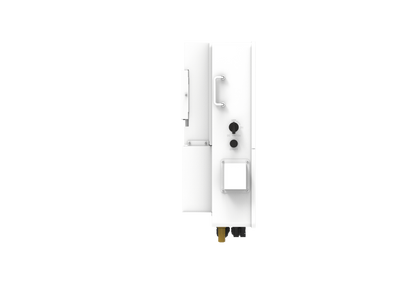

  • Deye SUN-SG02HP3-EU-AM3 side isolators

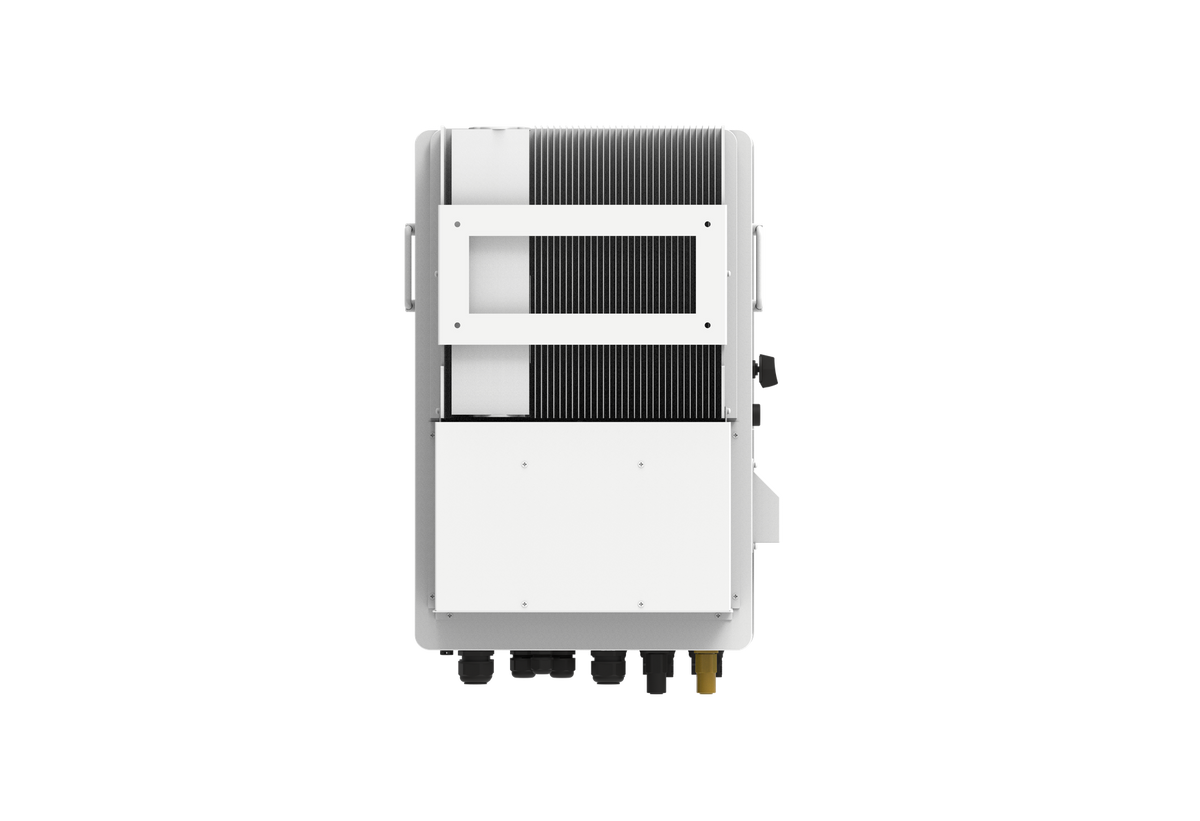

  • Deye SUN-SG02HP3-EU-AM3 rear cooling
Model
€1.795,95
€1.795,95
Tax included.

Three-phase high-voltage hybrid inverter for commercial solar-plus-storage. 29.9 kW and 30 kW, three MPPTs, a 160–700 V battery at 75 A, and up to 10 units in parallel on-grid and off-grid.

Key specifications

Series

SUN-75/80K-SG02HP3-EU-EM6

Rated power

75 / 80 kW three-phase

Max. efficiency

98.7% (Euro 98.1%, MPPT >99%)

Battery

Lithium-ion, 160–1000 V, 80 A + 80 A, 2 inputs

MPPT

6 trackers, 2 strings each (2+2+2+2+2+2), 36 A per tracker

Parallel

Up to 10 units on-grid and off-grid

Ingress protection

IP65

Warranty

5 years, up to 10 years by country

Battery and backup

High-voltage lithium battery range 160–1000 V with two independent inputs at 80 A each. BMS self-adaptation and six charge and discharge periods support time-of-use shifting on a commercial site. Off-grid peak power is 1.5× rated for 10 seconds. Diesel-generator energy can be stored in the battery.

PV and grid

Max. PV input voltage 1000 V, MPPT range 150–850 V, start-up 180 V, rated PV input 650 V. Six MPPTs with two strings per tracker (2+2+2+2+2+2) and 36 A operating current per tracker. Rated AC 220/380 V or 230/400 V, 3L+N+PE. AC coupling for an existing solar system, and 200 A continuous grid-to-load passthrough.

Protection and monitoring

Integrated DC reverse polarity, AC overcurrent, overvoltage and short-circuit protection, thermal protection, anti-islanding, insulation monitoring, residual current detection, DC switch, and Type II surge protection on DC and AC. Optional AFCI. Communication is RS485, RS232 and CAN. Display is LCD and LED. Monitoring is GPRS, Wi-Fi, Bluetooth, 4G or LAN. Operating range −40 to +60°C, with derating above 45°C, up to 3000 m.

Deye SUN-29.9/30K-SG02HP3-EU-AM3 | 29.9/30kW Three-Phase HV Hybrid Inverter

€1.795,95

  • Battery

    160-700V

  • MPPTs

    3

  • Max. efficiency

    98.5%

  • Parallel

    10
Three roofs, one inverter.

PV layout

Three roofs, one inverter.

Three MPPTs, with strings arranged 2+2+2, and 36 A on each tracker. A warehouse, a carport, and an east-west field can each hold their own voltage. Max. PV input is 1000 V, and the MPPT window is 150–850 V.

  • 3 MPPTs independent trackers
  • 6 strings 2 per MPPT
  • 36 A per tracker
75 A into a high-voltage battery.

Storage

75 A into a high-voltage battery.

A lithium battery from 160 V to 700 V charges and discharges at up to 75 A. Charging follows the BMS. Max. efficiency is 98.5%, Euro efficiency is 98.0%, and MPPT efficiency stays above 99%.

  • 160–700 V battery voltage
  • 75 A charge / discharge
  • 98.5% max. efficiency
Uneven loads, full output.

Phases

Uneven loads, full output.

100% unbalanced three-phase output. A workshop can put the heavier load on one phase while the other two stay lighter, and the inverter keeps feeding all three.

  • 100% unbalanced output
  • Three-phase 3L + N + PE
  • Mixed loads across the phases
The generator fills the battery.

Backup

The generator fills the battery.

Energy from a diesel generator can be stored in the battery when the grid is down. Off-grid peak power is 1.5 times rated power for 10 seconds, for a motor start while the generator covers the longer outage.

  • Diesel into the battery
  • 1.5× rated off-grid peak
  • 10 s peak duration
Six windows in the working day.

Time of use

Six windows in the working day.

Charging and discharging can be set across six periods. Fill the battery when the tariff is low or the array is strong, and discharge through business hours when the load is high.

  • 6 periods each day
  • Charge low tariff or strong PV
  • Discharge business hours
Grow past a single cabinet.

Expansion

Grow past a single cabinet.

Up to 10 inverters can run in parallel for on-grid and off-grid operation. Batteries can be paralleled as well. Start with one 29.9 kW or 30 kW unit and add cabinets as the load grows.

  • 10 inverters in parallel
  • On-grid and off-grid same architecture
  • Batteries in parallel
Leave the existing array in place.

Retrofit

Leave the existing array in place.

AC coupling adds this hybrid inverter to a solar system that is already running. The original PV stays in service. The new unit brings battery storage for peak shaving or backup.

  • AC coupling retrofit
  • Existing PV stays in service
  • Battery added for the site
Mount it on the plant wall.

Outdoor plant

Mount it on the plant wall.

Ingress protection is IP65, so the cabinet can sit outdoors. Type II surge protection covers AC and DC. Intelligent air cooling carries the cabinet through a hot working day.

  • IP65 outdoor install
  • Type II AC and DC surge
  • Air cooling intelligent
SPECIFICATIONS

Technical data

Parameter SUN-29.9K-SG02HP3-EU-AM3 SUN-30K-SG02HP3-EU-AM3
Rated AC active power 29900 W 30000 W
Max. AC apparent power 29900 VA 33000 VA
Max. PV input power 47840 W 48000 W
Battery voltage 160–700 V 160–700 V
Max. charge/discharge current 75 A 75 A
MPP trackers / strings 3/2+2+2 3/2+2+2
MPPT voltage range 150–850 V 150–850 V
Max. PV input voltage 1000 V 1000 V
Max. operating current per MPPT 36 A 36 A
Max. efficiency 98.5% 98.5%
Parallel Max. 10, on-grid and off-grid Max. 10, on-grid and off-grid
Ingress protection IP65 IP65
Cabinet size (W×H×D) 448×688×270 mm 448×688×270 mm
Weight 46 kg 46 kg

Which models are on this listing?

This listing is the 29.9 kW and 30 kW models. Both have 3 MPPTs with strings arranged 2+2+2, a 160–700 V lithium battery, and a max. charge/discharge current of 75 A.

Can I add storage to an existing PV plant?

Yes. AC coupling retrofits this hybrid inverter onto an existing solar system. The original PV stays in place, and this inverter adds battery storage.

Does it support a diesel generator?

Yes. The inverter can store energy from a diesel generator in the battery. Off-grid peak power is 1.5 times rated power for 10 seconds.

What warranty is included?

Standard warranty is 5 years, and it can extend to 10 years.
